低压差稳压器 1A FlexCap LDO Linear Reg
The LP38869 low-dropout linear regulator operates with an input voltage supply from +2.7V to +5.5V input, and delivers a specified 1A load current with a low 200 mV dropout. The high 50 dB PSRR at 100 kHz results from a high gain control loop that also yields excellent transient response. Coupled with a high accuracy output voltage, ±0.75 % over temperature, the LP38869 is an ideal power supply for FPGAs, DSPs or MCUs. Output voltage is preset at +2.5V, or may be adjustable between +0.8V to +5V with an external resistor divider.
The LP38869 only needs 1 μF output capacitance for stability. The FlexCap compensation allows the use of any type of output capacitor, regardless of ESR. Other features include: Soft-Start; delayed reset output; low-power shutdown; short-circuit protection; and thermal shutdown protection
**Ground Pin Current:** Typically less than 1 mA at 1A load
**Shutdown Mode:** Typically 2 µA quiescent current when the SHDN pin is pulled low.
**Simplified Compensation:** Stable with any type of output capacitor.
输出接口数 1
输出电流 1 A
静态电流 0.6 mA
跌落电压 0.185V @1A,0.0002V @1mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 16

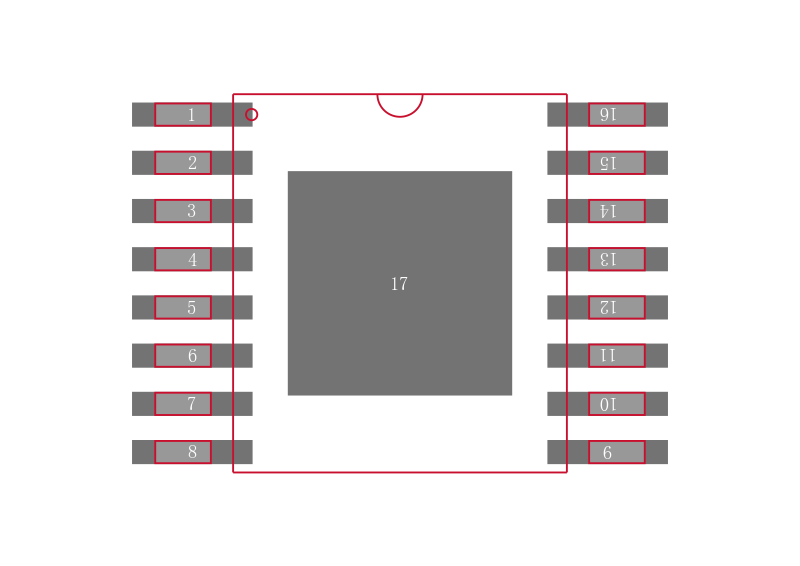

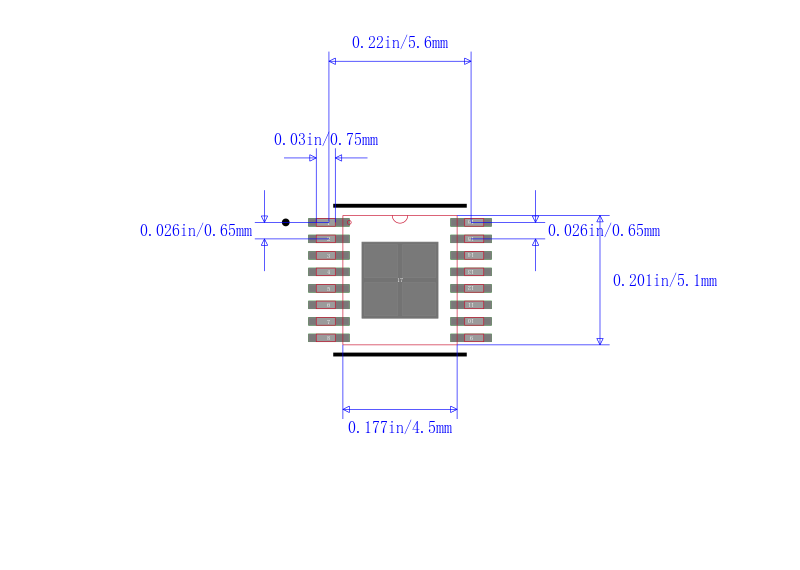

封装 HTSSOP-16
封装 HTSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
