低压差稳压器 500Ma Low Noise LDO
PMIC - 稳压器 - 线性 正 固定 1 输出 500mA 8-WSON(4x4)
得捷:
IC REG LINEAR 5V 500MA 8WSON
立创商城:
LP2989ILD-5.0/NOPB
德州仪器TI:
500-mA, 16-V, low-dropout voltage regulator with power good & enable
贸泽:
低压差稳压器 500Ma Low Noise LDO
艾睿:
This LDO LP2989ILD-5.0/NOPB linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. It has an overall accuracy of ±1.25 %. Its typical dropout voltage at current is 0.001@0.1mA|0.15@200mA|0.31@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. This will operate at a minimum voltage of 2.1 V and a maximum voltage of 16 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.4%Typ and line regulation of 0.014%/V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.003@0.1mA|0.2@200mA|0.425@500mA V.
安富利:
LDO Regulator Pos 5V 0.5A 8-Pin LLP EP T/R
Chip1Stop:
LDO Regulator Pos 5V 0.5A 8-Pin WSON EP T/R
Verical:
LDO Regulator Pos 5V 0.5A 8-Pin WSON EP T/R
DeviceMart:
IC REG LDO 5V .5A 8LLP
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 500mA 8-WSON 4x4
电源电压DC 16.0V max
额定电流 500 mA
容差 3.5 %
输出接口数 1
输出电压 5 V
输出电流 500 mA
供电电流 175µA ~ 9mA
静态电流 110 µA
输出电容类型 Ceramic
跌落电压 0.31V @500mA
调节输出数 1
输入电压Max 16 V
输入电压Min 2.1 V
输出电压Min 5 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.25 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 8

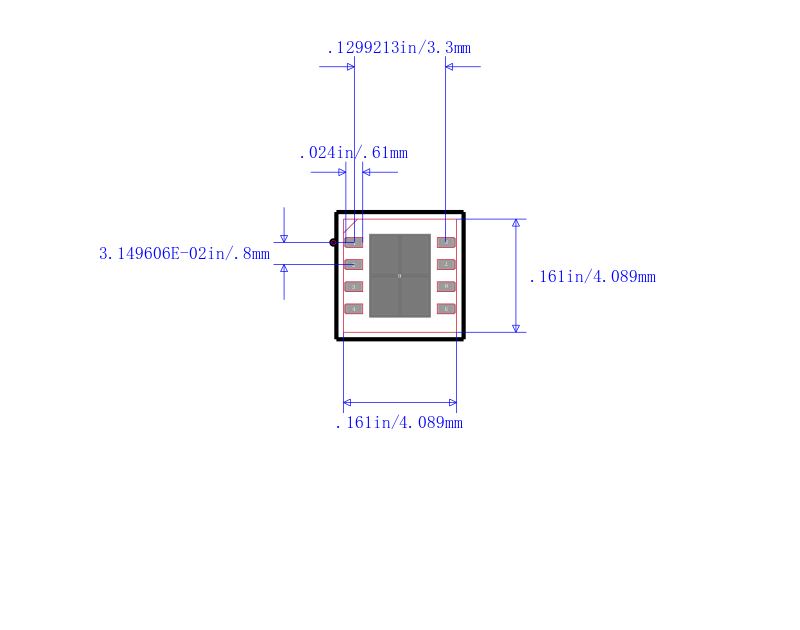

封装 WSON-8
封装 WSON-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2989ILD-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2989ILDX-5.0/NOPB 德州仪器 | 完全替代 | LP2989ILD-5.0/NOPB和LP2989ILDX-5.0/NOPB的区别 |
LP2989ILD-5.0 德州仪器 | 完全替代 | LP2989ILD-5.0/NOPB和LP2989ILD-5.0的区别 |
LP2989ILDX-5.0 德州仪器 | 类似代替 | LP2989ILD-5.0/NOPB和LP2989ILDX-5.0的区别 |
