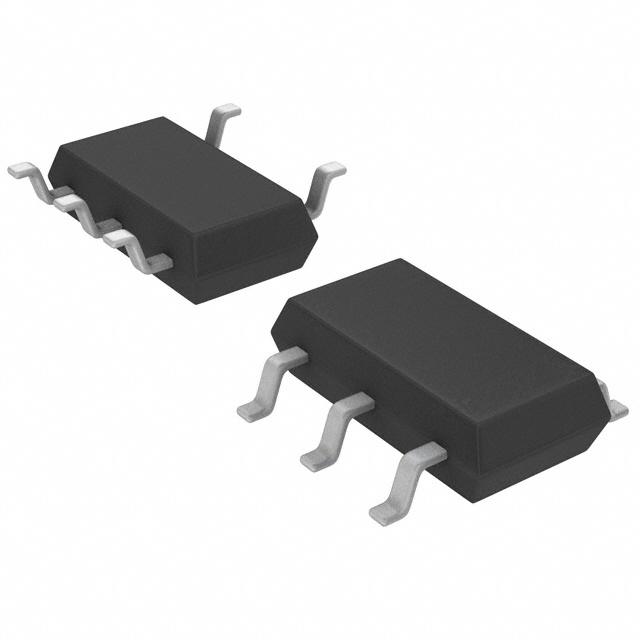

LDO Regulator Pos 1.5V 0.15A 5Pin TSOT-23 T/R
Control the voltage level of your circuit with this LDO linear regulator from . Its typical dropout voltage at current is 0.115@50mA|0.35@150mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device"s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 1.6 V and not exceeding a voltage of 6.5 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 40mV and line regulation of 20mV. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum dropout voltage is 0.16@50mA|0.45@150mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 6.50V max
输出电压 1.5 V
输出电流 150 mA
跌落电压 0.35V @150mA
输入电压Max 6.5 V
输入电压Min 1.6 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤6.5 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 0.9 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC1844ES5-1.5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1844ES5-1.5#TRM 凌力尔特 | 完全替代 | LTC1844ES5-1.5#TRMPBF和LTC1844ES5-1.5#TRM的区别 |
LTC1844ES5-1.5#TRPBF 凌力尔特 | 完全替代 | LTC1844ES5-1.5#TRMPBF和LTC1844ES5-1.5#TRPBF的区别 |
