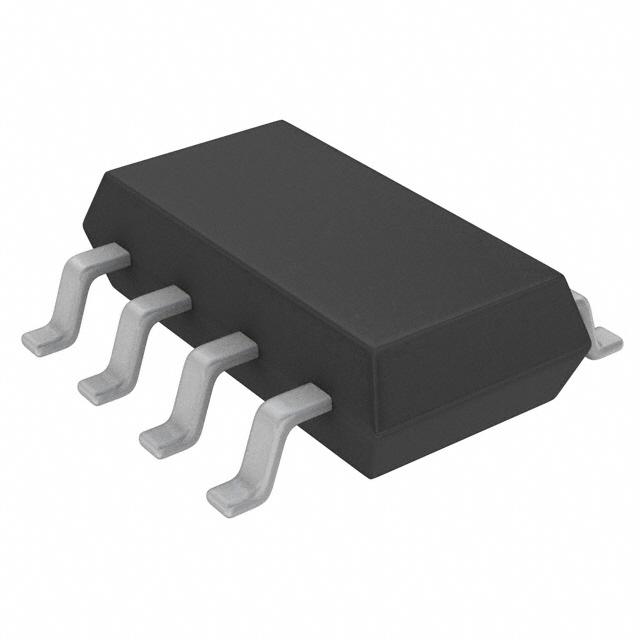

LT3060ETS8-15#TRMPBF

LINEAR TECHNOLOGY  LT3060ETS8-15#TRMPBF  固定电压稳压器, LDO, 1.6V至45V, 300mV压差, 15V输出, 100mA输出, TSOT-23-8

This LDO linear regulator from is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.075@1mA|0.15@10mA|0.24@50mA|0.3@100mA V. This voltage regulation device"s single output can produce a current up to 0.1 A. Use this part at voltages between 1.6 V and 45 V. With a fixed output that has a voltage of 15 V, this is power management at its best. At a load regulation of 100mV and line regulation of 55mV a constant current can be produced at the output of your circuit. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. The maximum dropout voltage is 0.11@1mA|0.2@10mA|0.28@50mA|0.35@100mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
