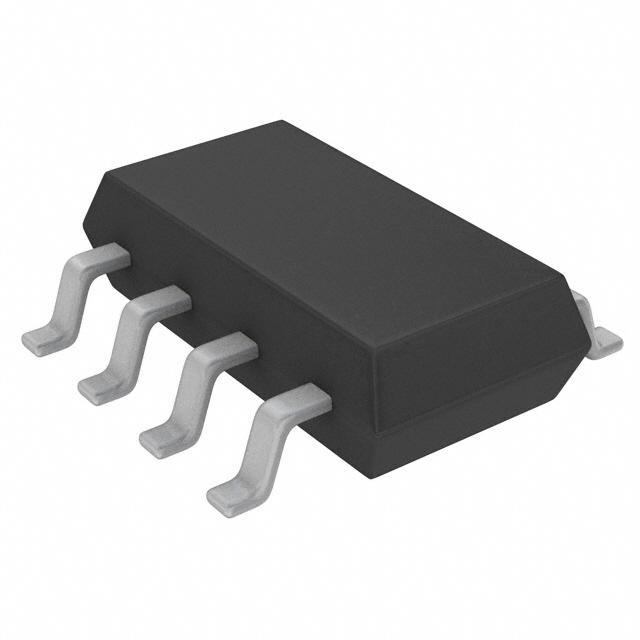

LT3007ETS8-1.8#TRMPBF

LT3007 Series - 3μA IQ, 20mA, 45V Low Dropout Fault Tolerant Linear Regulators; Package: SOT; Pins: 8; Temperature Range: -40℃ to 85℃

Having trouble maintaining a steady voltage? This LDO linear regulator from will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.115@100uA|0.17@1mA|0.27@10mA|0.3@20mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.02 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2 V that does not exceed 45 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 15mV and line regulation of 9mV. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.18@100uA|0.25@1mA|0.34@10mA|0.365@20mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
