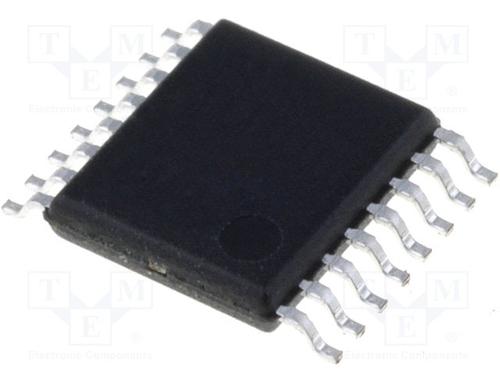

STMICROELECTRONICS L6986 直流-直流开关降压逐步递减稳压器, 可调, 4V-38V输入, 850mV-38V输出, 2A输出, HTSSOP-16
The is a step-down monolithic Switching Regulator able to deliver up to 2A DC. The output voltage adjustability ranges from 0.85V to VIN. Thanks to the P-channel MOSFET high-side power element, the device features 100% duty cycle operation. The wide input voltage range meets the specification for the 5, 12 and 24V power supplies. The low consumption mode LCM is designed for applications active during idle mode, so it maximizes the efficiency at light load with controlled output voltage ripple. The low noise mode LNM makes the switching frequency constant overload current range, meeting the low noise application specification. The output voltage supervisor manages the reset phase for any digital load FPGA. The RST open collector output can also implement output voltage sequencing during the power-up phase. The synchronous rectification, designed for high efficiency at medium - heavy load and the high switching frequency capability make the size of the application compact.
输出接口数 1
输出电压 0.85V ~ 38V
输出电流 2 A
针脚数 16
开关频率 2 MHz
输入电压Max 38 V
输入电压Min 4 V
输出电压Max 38 V
输出电压Min 850 mV
输出电流Max 2 A
工作温度Max 150 ℃
输入电压 4V ~ 38V
安装方式 Surface Mount
引脚数 16
封装 HTSSOP-16
封装 HTSSOP-16
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Communications & Networking, Sensing & Instrumentation, 传感与仪器, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L6986 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L6986TR 意法半导体 | 完全替代 | L6986和L6986TR的区别 |
