LT1431CS8概述

V-Ref Adjustable 2.5V to 36V 100mA 8Pin SOIC N

Description

The  LT®1431  is  an  adjustable  shunt  voltage  regulator with 100mA sink capability, 0.4% initial reference voltage tolerance and 0.3% typical temperature stability. On-chip divider resistors allow the LT1431 to be configured as a 5V shunt regulator, with 1% initial voltage tolerance and requiring no additional external components. By adding two external resistors, the output voltage may be set to any value between 2.5V and 36V. The nominal internal current limit of 100mA may be decreased by including one external resistor.

Features

Guaranteed 0.4% Initial Voltage Tolerance

0.1Ω Typical Dynamic Output Impedance

Fast Turn-On

Sink Current Capability, 1mA to 100mA

Low Reference Pin Current

Available in J8, N8, S8 or 3-Lead TO-92 Z Packages

applications

Linear Regulators

Adjustable Power Supplies

Switching Power Supplies

LT1431CS8中文资料参数规格
技术参数

容差 ±0.4 %

输出电压 2.5V ~ 36V

输出电流 100 mA

通道数 1

输入电压Max 36 V

输出电流Max 100 mA

工作温度Max 70 ℃

工作温度Min 0 ℃

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

温度系数 ±30 ppm/℃

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

数据手册

LT1431CS8引脚图与封装图

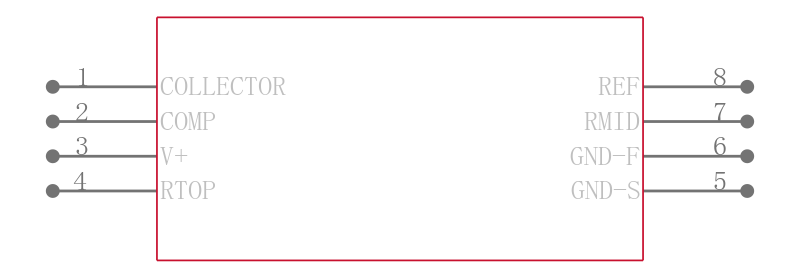

LT1431CS8引脚图
LT1431CS8封装图
LT1431CS8封装焊盘图
