15, 30 & 50W Industrial Grade
Conformally coated assembly
Immunity to IEC/EN61000-4-2/3/4/5/6
Outputs: Over-load and short circuit proof
MTBF greater than 1600000hrs
### 注
Operating temperature with convection cooling.
### 标准
EN/IEC60950, UL1950, CSA22.2 950-95
### 认可
EN/IEC60950; UL1950; CSA22.2 950-95
### 标准
IEC, EN, UL
欧时:

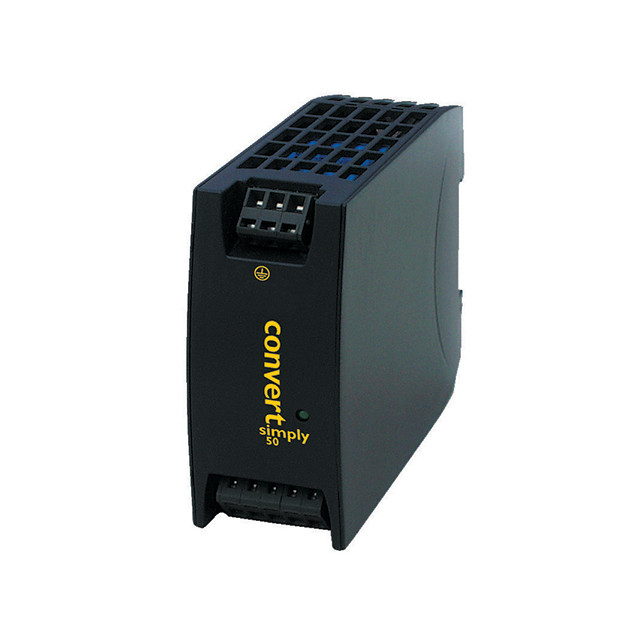

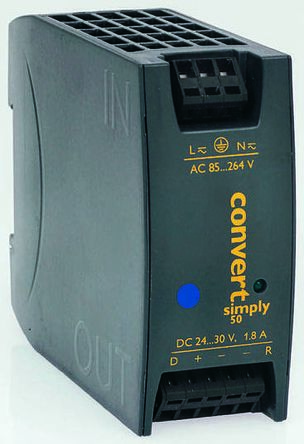

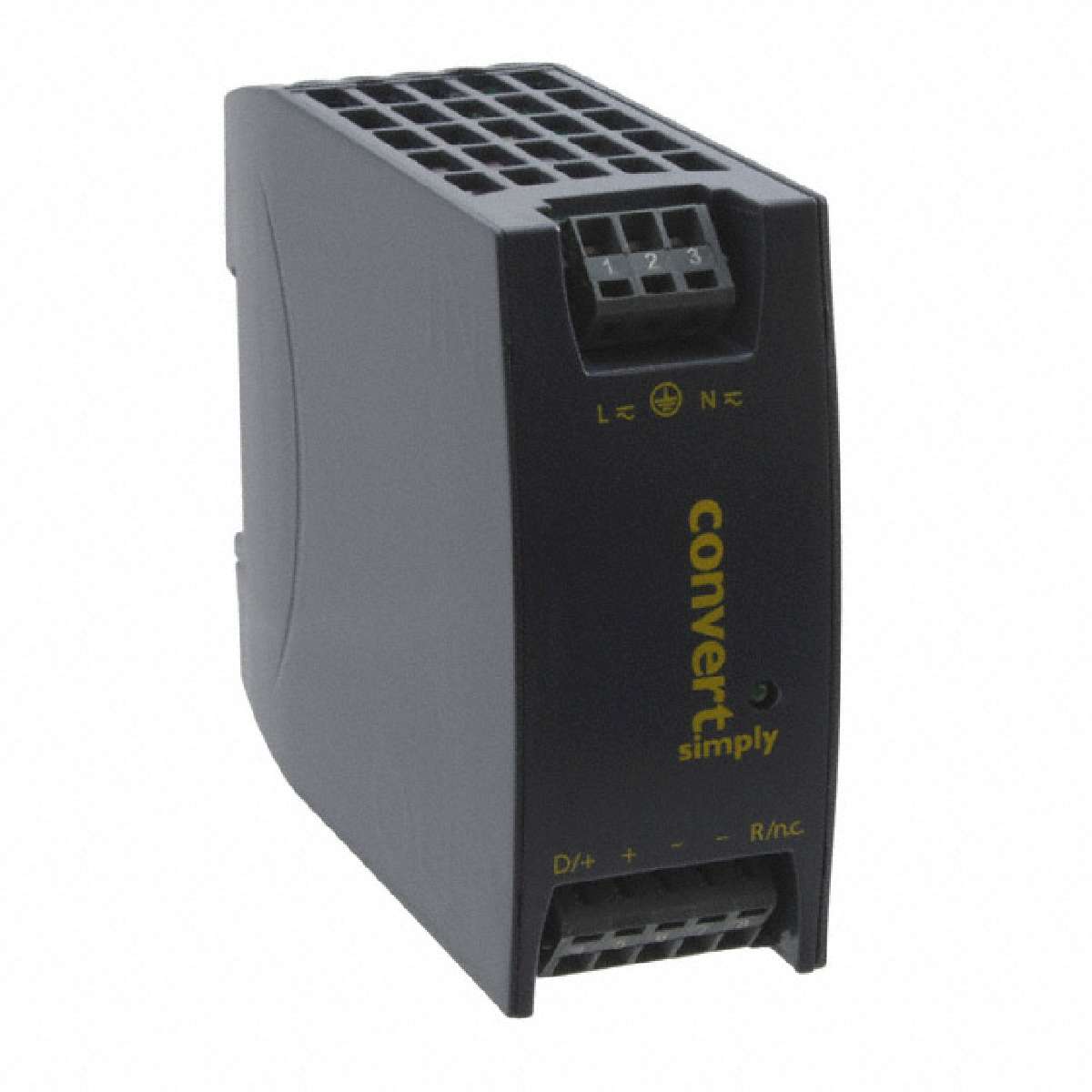

BEL POWER SOLUTIONS INC DIN 导轨和面板安装电源 LOK 开关模式 50W, 1.8A输出 24V dc
艾睿:
AC/DC Power Supply Single-OUT 25.7V 1.8A 49W 8-Pin
额定功率 50 W
输出接口数 1
输出电压 24 VDC
输出电流 1.8 A
输出功率 49 W
输入电压Max 264 VAC
输入电压Min 85 VAC
输入电压DC Max 250 V
输入电压DC Min 90 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电压Max 30 VDC
输出电压Min 24 VDC
输入电流Min 0.8 A
额定功率Max 49 W
工作温度Max 50 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 264VAC
安装方式 DIN Rail
引脚数 8
宽度 38 mm
高度 90 mm
重量 350.17 g
工作温度 -10℃ ~ 50℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
