LM1085 3A低压降稳压器正 LM1085 3A Low Dropout Positive Regulators
PMIC - 稳压器 - 线性 正 可调式 1 输出 3A DDPAK/TO-263-3
得捷:
IC REG LIN POS ADJ 3A DDPAK
立创商城:
正 Vin=29V Vout=1.25V 3A 75dB@120Hz
艾睿:
Control the voltage level of your circuit with this LDO LM1085ISX-ADJ linear regulator from Texas Instruments. Its typical dropout voltage at current is 1.3@3A V. This voltage regulation device&s;s single output can produce a current up to 3 A. It only needs a voltage of at least 2.6 V while not exceeding 29 V to effectively power your circuit. With an adjustable output, this is power management at its best. Users like the load regulation of 0.3% and line regulation of 0.2%. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 1.5@3A V.
安富利:
LDO Regulator Pos 3A 4-Pin3+Tab TO-263 T/R
Chip1Stop:
LDO Regulator Pos 3A 4-Pin3+Tab TO-263 T/R
Verical:
LDO Regulator Pos 1.25V to 27.5V 3A 4-Pin3+Tab DDPAK T/R
输出接口数 1
输入电压DC 15.0V max
输出电压 1.2V ~ 15V
输出电流 3 A
静态电流 5 mA
输出电容类型 Ceramic
跌落电压 1.3V @3A
调节输出数 1
输入电压Max 29 V
输入电压Min 2.6 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.6V ~ 29V
安装方式 Surface Mount
引脚数 4

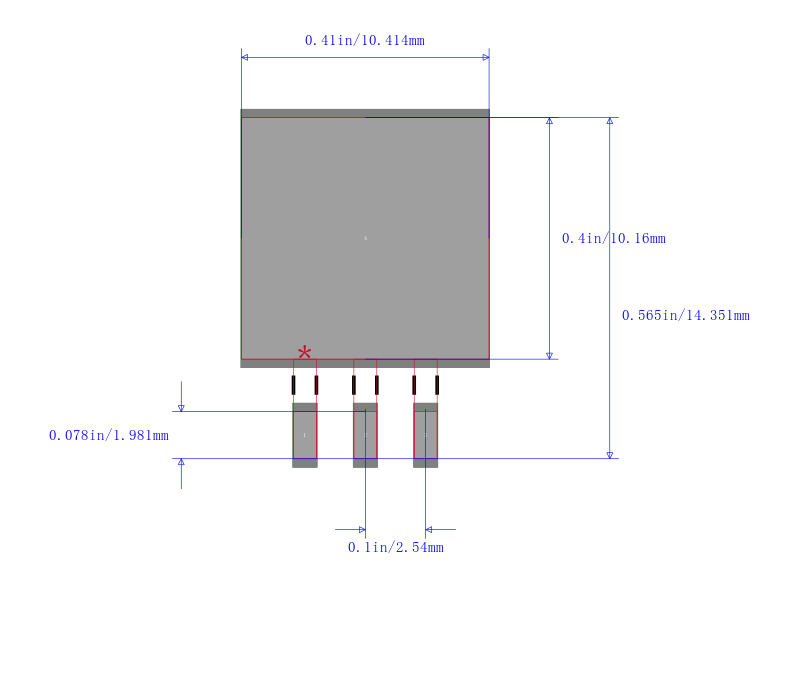

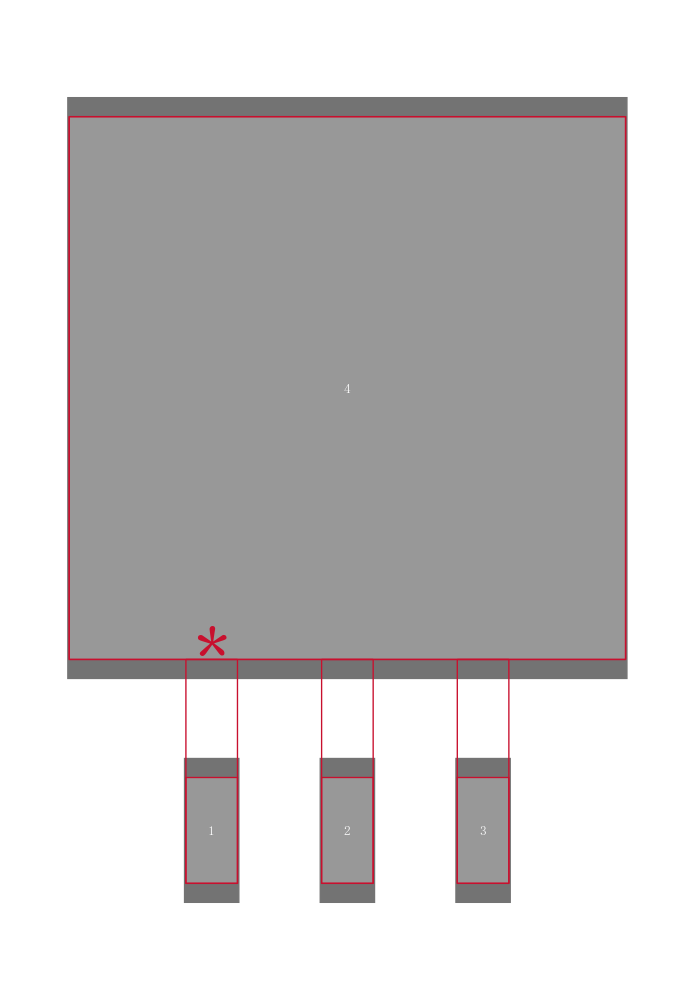

封装 TO-263-4
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM1085ISX-ADJ TI 德州仪器 | 当前型号 | 当前型号 |
LM1085IS-ADJ/NOPB 德州仪器 | 类似代替 | LM1085ISX-ADJ和LM1085IS-ADJ/NOPB的区别 |
LM1085ISX-ADJ/NOPB 德州仪器 | 类似代替 | LM1085ISX-ADJ和LM1085ISX-ADJ/NOPB的区别 |
LM1085IS-ADJ 德州仪器 | 功能相似 | LM1085ISX-ADJ和LM1085IS-ADJ的区别 |
