LPQ142-C

ARTESYN EMBEDDED TECHNOLOGIES  LPQ142-C  交流-直流转换器, 闭合式, 4路输出, 145W

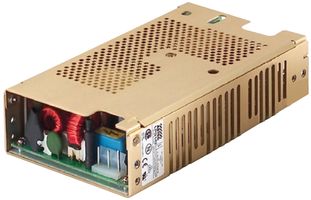

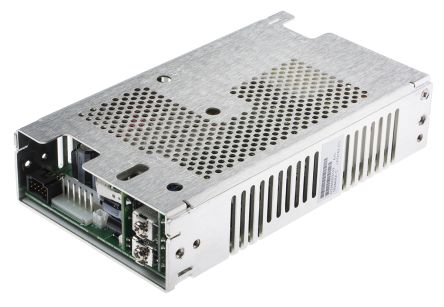

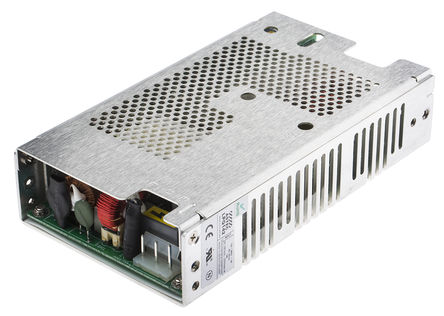

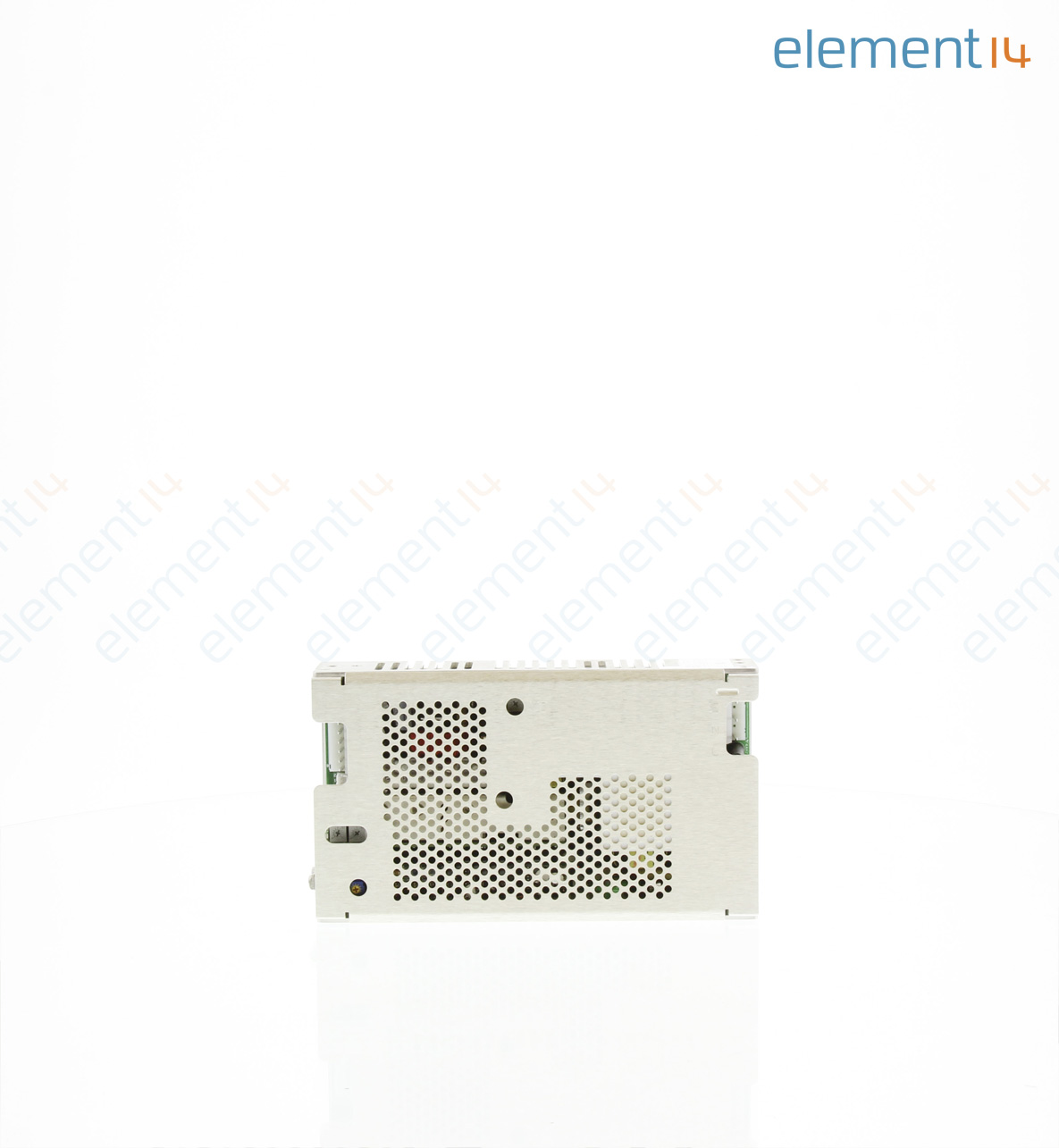

Astec 145W Switch Mode Quad Output AC/DC Power Supply - LPQ 142 Series

145W switch mode AC/DC power supply with quad output. Outputs 1, 3 & 4 of this AC/DC power adapter are adjustable, output 4 is floating and can be also be adjusted. This AC/DC power supply has high efficiency, active power factor correction and a built-in EMI filter. A cover is supplied with this AC power supply.

Adjustable outputs on 1, 3 & 4

Remote sense on main output

High efficiency of 75% typical at full load

Single wire current sharing

Adjustable floating 4th output

Low output ripple

Safety ground leakage current of 1.0mA @ 50/60 Hz, 264 VAC input

Built-in EMI filter

Overvoltage, overload and thermal overload protection

Power fail and remote inhibit

Active power factor correction compliance to IEC EN61000-3-2

EMC compliance to FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B conducted, VDE 0878 PT3 Class B conducted

### 注

The 60W output power for this AC/DC power supply is based on a convection rating with a cover fitted. Without a cover this rating would be 80W. The maximum 145W output power for this AC/DC power supply can only be obtained by use of a cooling fan giving 30 cfm forced air, with a cover fitted this would be 100 W.

Derating from 50 to 70°C is 2.5% per °C.

Suitable connecting kit for this AC/DC power supply: stock number 151-694

### 认可

VDE; UL Recognised; CSA Certified; NEMKO; CB

### 标准

VDE: 60950, UL: 60950, CSA: 60950, NEMKO EN 60950/EMKO-TUE

### 认可

VDE; UL; CB; CSA; CE; NEMKO

### 标准

EN61000-3-2; EN 60950/EMKO-TUE
