参考电压 5V uP Prec Series Bandgap Ref.
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. It has an initial accuracy of 0.5%. By working with a maximum input voltage of 30 V, this is the best way to control the power in your circuit. With an output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 3000ppm/mA and line regulation of 800ppm/V. This voltage reference circuit supports series topology. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It runs with a maximum temperature coefficient of 50ppm/°C. This voltage reference circuit has an operating temperature range of 0 °C to 70 °C.
容差 ±0.5 %
输入电压DC 20.0V max
输出电压 5 V
输出电流 40 mA
供电电流 240 µA
通道数 1
静态电流 200 µA
输入电压Max 30 V
输出电压Min 5 V
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 ±0.5 %
输入电压 5.9V ~ 20V
安装方式 Surface Mount
引脚数 3

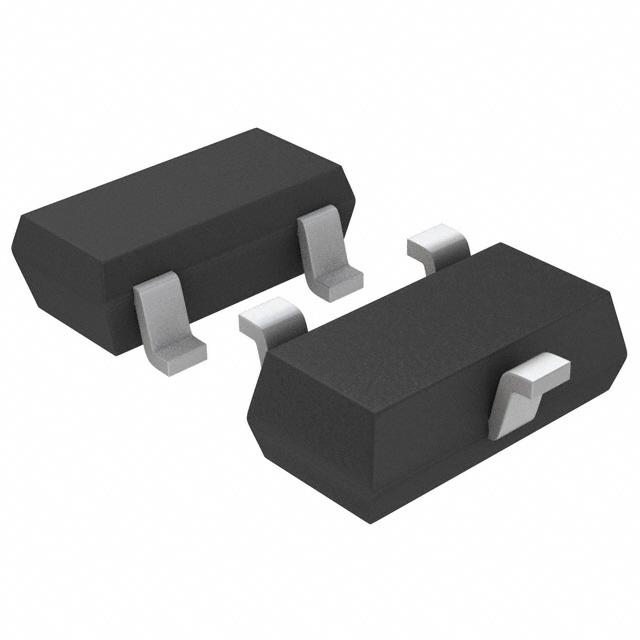

封装 SOT-23-3
高度 1.12 mm
封装 SOT-23-3
工作温度 0℃ ~ 70℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1460KCS3-5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1460KCS3-5#TRPBF 凌力尔特 | 完全替代 | LT1460KCS3-5#TRMPBF和LT1460KCS3-5#TRPBF的区别 |
LT1460KCS3-5 凌力尔特 | 完全替代 | LT1460KCS3-5#TRMPBF和LT1460KCS3-5的区别 |
LT1460JCS3-5#TR 凌力尔特 | 类似代替 | LT1460KCS3-5#TRMPBF和LT1460JCS3-5#TR的区别 |
