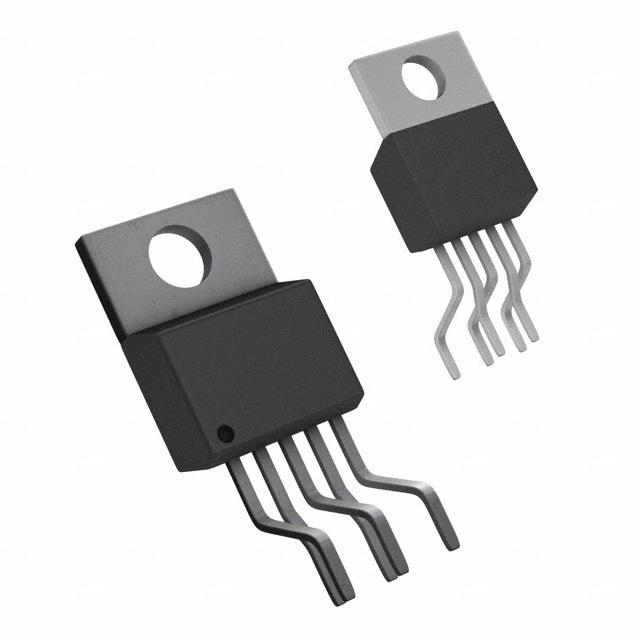

具有使能功能的 1A、负电压、可调节超低压降稳压器 5-TO-220
PMIC - 稳压器 - 线性 负 可调式 1 输出 1A TO-220-5
得捷:
IC REG LIN NEG ADJ 1A TO220-5
立创商城:
LM2991T/LF03
德州仪器TI:
1-A, negative, adjustable low-dropout voltage regulator with enable
贸泽:
LDO Voltage Regulators A 926-LM2991T/NOPB
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO LM2991T/LF03 linear regulator manufactured by Texas Instruments. Its typical dropout voltage at current is 0.1@100mA|0.6@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. It only needs a voltage of at least -26 V while not exceeding 0.3 V to effectively power your circuit. With an adjustable output that has a voltage of -3 to -24 V, this is power management at its best. At a load regulation of 0.4% and line regulation of 0.04%/V a constant current can be produced at the output of your circuit. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is negative. The maximum dropout voltage is 0.2@100mA|0.8@1A V.
安富利:
LDO Regulator Neg -3V to -24V 1A 5-Pin5+Tab TO-220 Rail
Chip1Stop:
LDO Regulator Neg -3V to -24V 1A 5-Pin5+Tab TO-220 Rail
Verical:
LDO Regulator Neg -3V to -24V 1A 5-Pin5+Tab TO-220 Tube
DeviceMart:
IC REG LDO NEG ADJ 1A TO220-5
输出接口数 1
输出电流 1 A
供电电流 0.7mA ~ 5mA
静态电流 5 mA
跌落电压 600 mV
调节输出数 1
输入电压Max 0.3 V
输入电压Min 26 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 0.3 V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
