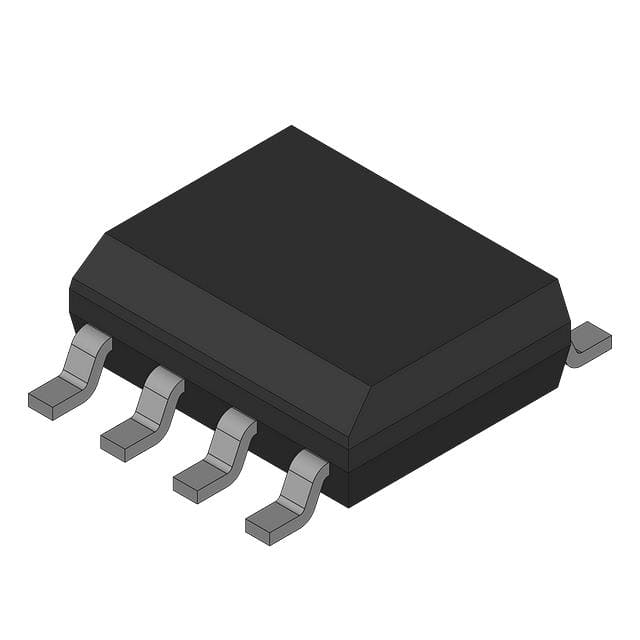

LM2936HVBMA-5.0

LM2936超低静态电流LDO稳压器 LM2936 Ultra-Low Quiescent Current LDO Voltage Regulator

PMIC - 稳压器 - 线性 正 固定 1 输出 50mA 8-SOIC

得捷:
IC REG LINEAR 5V 50MA 8SOIC

立创商城:
正 Vin=60V Vout=5V 50mA 60dB@120Hz

贸泽:
低压差稳压器 A 926-LM2936HVBMA50NPB

艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO LM2936HVBMA-5.0 linear regulator from Texas Instruments is perfect for you! It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.05@100uA|0.2@50mA V. This voltage regulation device&s;s single output can produce a current up to 0.05 A. With a small input voltage of 4 V and a max of 60 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. A load regulation of 30mV and line regulation of 30mV is necessary for providing a constant voltage level at your output. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.1@100uA|0.4@50mA V. Its polarity is positive.
