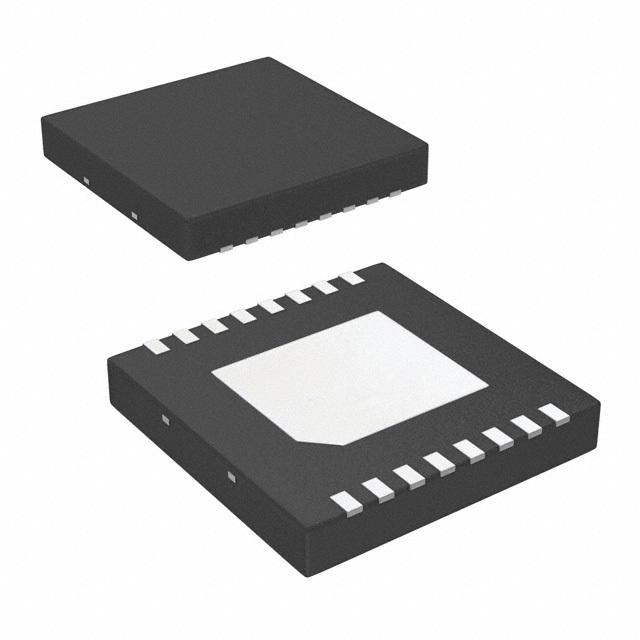

LM5041SD/NOPB

具有断续模式的级联 PWM 控制器 16-WSON -40 to 125

Texas Instruments" current controller can modulate different levels of voltage, depending on what your requirements are. Its typical operating supply voltage is 9 V. Its single PWM output produces a current of 1500 mA. This current mode controller supports boost|buck|half-bridge|push-pull topology. This part offers a switching frequency of 600Typ kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This current mode controller"s maximum duty cycle is 50Typ %. This device has a typical operating supply voltage of 9 V. Its minimum operating supply voltage of 8.7 V, while its maximum is 9.3 V. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
