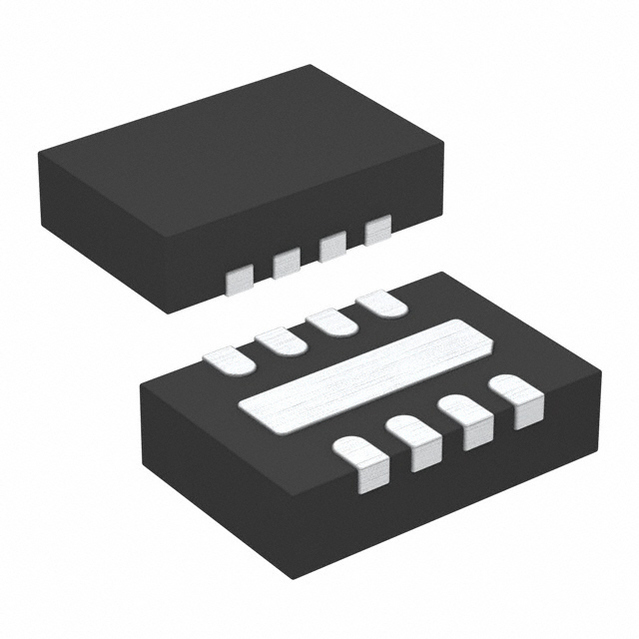

LDO Regulator Pos 1.2V 0.1A 8Pin DFN EP
If you need to maintain a steady voltage on your circuit, then this LDO linear regulator from is perfect for you! Its typical dropout voltage at current is 0.085@10mA|0.15@100mA V. This voltage regulation device"s single output can produce a current up to 0.1 A. This will operate at a minimum voltage of 0.9 V and a maximum voltage of 10 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.2% and line regulation of 0%Typ. The maximum dropout voltage is 0.115@10mA|0.18@100mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 10.0V max
输出电压 1.2 V
输出电流 100 mA
供电电流 250µA ~ 3.5mA
跌落电压 0.085V @10mA,0.15V @100mA
输入电压Max 10 V
输入电压Min 0.9 V
输出电压Min 1.2 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
高度 0.75 mm
封装 DFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3020EDD-1.2#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3020EDD-1.2#TRPBF 凌力尔特 | 完全替代 | LT3020EDD-1.2#PBF和LT3020EDD-1.2#TRPBF的区别 |
ADP1706ACPZ-1.2-R7 亚德诺 | 功能相似 | LT3020EDD-1.2#PBF和ADP1706ACPZ-1.2-R7的区别 |
ADP1707ACPZ-1.2-R7 亚德诺 | 功能相似 | LT3020EDD-1.2#PBF和ADP1707ACPZ-1.2-R7的区别 |
