具有电源正常指示和使能功能的 200mA、16V、低压降稳压器 8-SOIC -40 to 125
Linear Voltage Regulator IC 1 Output 200mA 8-SOIC
立创商城:
LP2987AIMX-5.0/NOPB
德州仪器TI:
200-mA, 16-V, low-dropout voltage regulator with power good & enable
得捷:
IC REG LINEAR 5V 200MA 8SOIC
艾睿:
Use this LDO LP2987AIMX-5.0/NOPB linear regulator from Texas Instruments to vary your voltage levels to your desired level. It has an overall accuracy of ±0.8 %. Its typical dropout voltage at current is 0.001@0.1mA|0.09@75mA|0.18@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.1 V and no higher than 16 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Users like the line regulation of 0.014%/V. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.002@0.1mA|0.12@75mA|0.32@200mA V.
安富利:
LDO Regulator Pos 5V 0.2A 8-Pin SOIC N T/R
Chip1Stop:
LDO Regulator Pos 5V 0.2A 8-Pin SOIC N T/R
Verical:
LDO Regulator Pos 5V 0.2A 8-Pin SOIC T/R
DeviceMart:
IC REG LDO 5V .2A 8-SOIC
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 200mA 8-SOIC
输出接口数 1
输出电压 5 V
输出电流 200 mA
供电电流 120µA ~ 3.7mA
静态电流 100 µA
输出电容类型 Ceramic
跌落电压 0.18V @200mA
调节输出数 1
输入电压Max 16 V
输入电压Min 2.1 V
输出电压Min 5 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.8 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 8

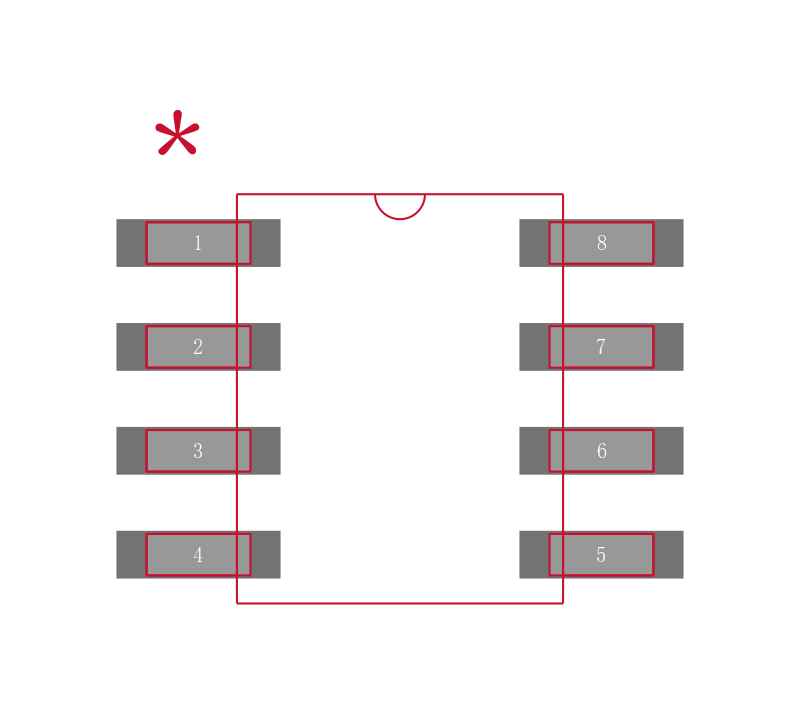

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2987AIMX-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2987IMX-5.0 德州仪器 | 完全替代 | LP2987AIMX-5.0/NOPB和LP2987IMX-5.0的区别 |
LP2987AIM-5.0/NOPB 德州仪器 | 完全替代 | LP2987AIMX-5.0/NOPB和LP2987AIM-5.0/NOPB的区别 |
LP2987IM-5.0/NOPB 德州仪器 | 类似代替 | LP2987AIMX-5.0/NOPB和LP2987IM-5.0/NOPB的区别 |
