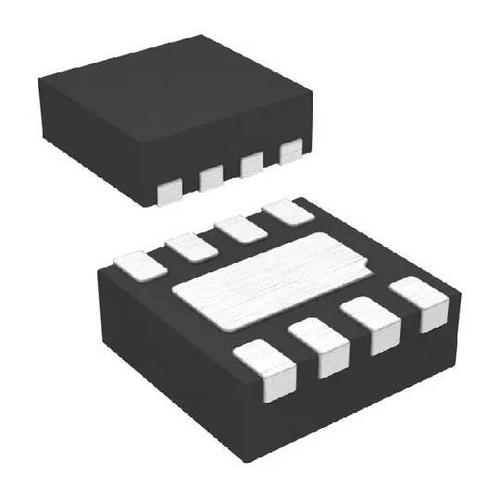

低压差稳压器 1.5V Fixed Output 100mA VLDO in DFN
This LDO linear regulator from acts like a variable resistor to maintain a steady voltage level. Its typical dropout voltage at current is 0.085@10mA|0.15@100mA V. This voltage regulation device"s single output can produce a current up to 0.1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 0.9 V that does not exceed 10 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. At a load regulation of 0.2% and line regulation of 0%Typ a constant current can be produced at the output of your circuit. The maximum dropout voltage is 0.115@10mA|0.18@100mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3020EDD-1.5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3020EDD-1.5#TRPBF 凌力尔特 | 完全替代 | LT3020EDD-1.5#PBF和LT3020EDD-1.5#TRPBF的区别 |
ADP1706ACPZ-1.5-R7 亚德诺 | 功能相似 | LT3020EDD-1.5#PBF和ADP1706ACPZ-1.5-R7的区别 |
ADP1707ACPZ-1.5-R7 亚德诺 | 功能相似 | LT3020EDD-1.5#PBF和ADP1707ACPZ-1.5-R7的区别 |
