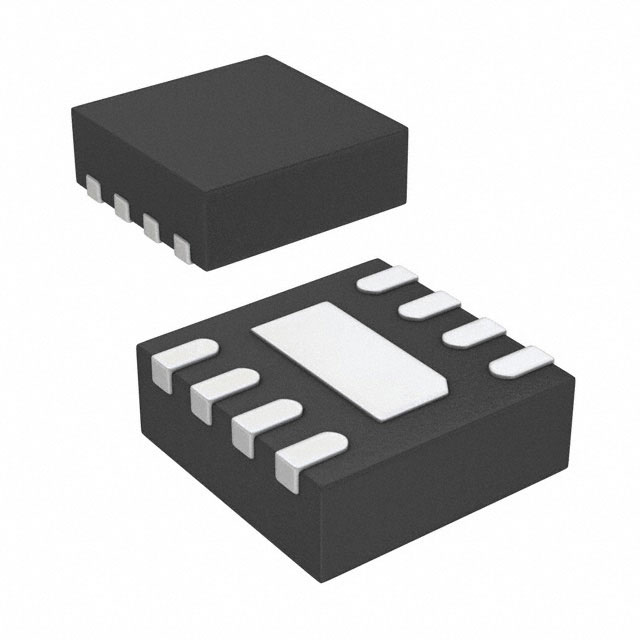

LINEAR TECHNOLOGY LT3060IDC-15#TRMPBF 固定电压稳压器, LDO, 1.6V至45V, 300mV压差, 15V输出, 100mA输出, DFN-8
Use this LDO linear regulator from to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.075@1mA|0.15@10mA|0.24@50mA|0.3@100mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.1 A. It only needs a voltage of at least 1.6 V while not exceeding 45 V to effectively power your circuit. With a fixed output that has a voltage of 15 V, this is power management at its best. At a load regulation of 100mV and line regulation of 55mV your circuit is capable of maintaining a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.11@1mA|0.2@10mA|0.28@50mA|0.35@100mA V. Its polarity is positive.
容差 2 %
输出接口数 1
输出电压 15 V
输出电流 100 mA
针脚数 8
跌落电压 300 mV
输入电压Max 45 V
输入电压Min 1.6 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤45 V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 125℃
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
