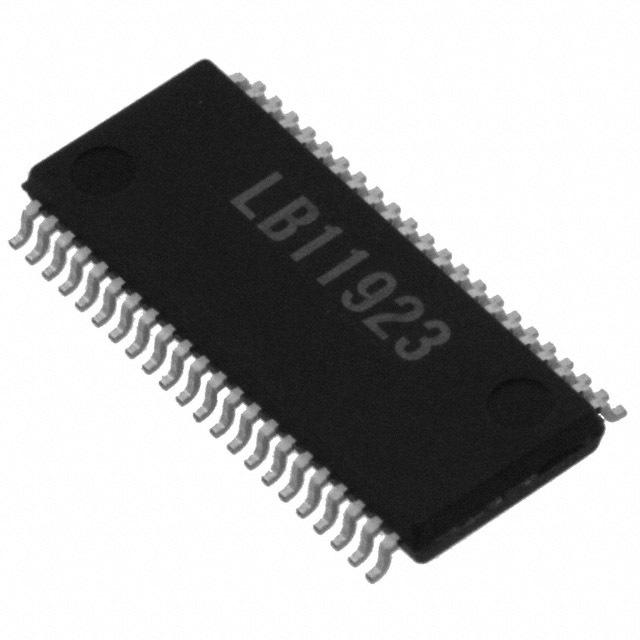

LB11923V-MPB-E

Brushless Motor Driver 44Pin SSOP Fan-Fold

LB11923V is a pre-driver IC designed for variable speed control of 3-phase brushless motors.It can be used to implement a motor drive circuit with the desired output capacity voltage, current by using discrete transistors for the output stage. It implements direct PWM drive for minimal power loss. Because the LB11923V includes an integrated VCO circuit, applications can control the motor speed arbitrarily by varying the external clock frequency.

Features

---

 |

.

Direct PWM drive

.

Speed discriminator + PLL speed control circuit

.

Speed lock detection output

.

Integrated crystal oscillator circuit

.

Forward/reverse switching circuit

.

Braking circuit short braking

.

Full complement of on-chip protection circuits, including lock protection, current limiter, and thermal shoutdown protection circuits.
