LDO(低压降)线性电压稳压器,1A 至 2A,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
可调 LDO(低压降)线性电压稳压器,1A 至 2A,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LIN NEG ADJ 1A TO220-5
欧时:
Voltage regulator,LM2991T -25V 1A
立创商城:
LM2991T/NOPB
德州仪器TI:
1-A, negative, adjustable low-dropout voltage regulator with enable
e络盟:
ADJUSTABLE LDO VOLTAGE REGULATOR, -2V TO
艾睿:
Having trouble maintaining a steady voltage? This LDO LM2991T/NOPB linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.1@100mA|0.6@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of -26 V and a maximum voltage of 0.3 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of -3 to -24 V, this is power management at its best. Using a load regulation of 0.4% and line regulation of 0.04%/V is needed for a programmable DC power supply. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is negative. The maximum dropout voltage is 0.2@100mA|0.8@1A V.
Jameco:
Low Dropout Regulator -3 Volt to -24 Volt 1A 5-Pin 5+Tab TO-220 Rail
安富利:
LDO Regulator Neg -3V to -24V 1A 5-Pin5+Tab TO-220 Rail
Chip1Stop:
LDO Regulator Neg -3V to -24V 1A 5-Pin5+Tab TO-220 Rail
Verical:
LDO Regulator Neg -3V to -24V 1A 5-Pin5+Tab TO-220 Tube
Newark:
# TEXAS INSTRUMENTS LM2991T/NOPB LDO Voltage Regulator, Adjustable, -26V to 300mV in, 600mV drop, -3V to -24V/1A out, TO-220-5
DeviceMart:
IC REG LDO NEG ADJ 1A TO-220
输出接口数 1
输入电压DC -26.0 V max
输出电压 -24.0 V max, -3.00 V min
输出电流 1 A
供电电流 0.7mA ~ 5mA
针脚数 5
静态电流 0.7 mA
跌落电压 600 mV
调节输出数 1
输入电压Max 0.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 0.3 V
安装方式 Through Hole
引脚数 5

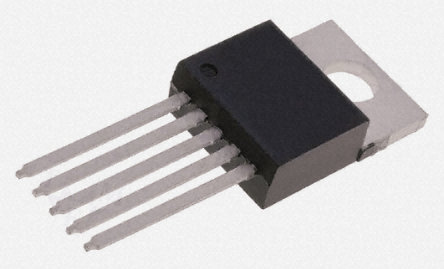

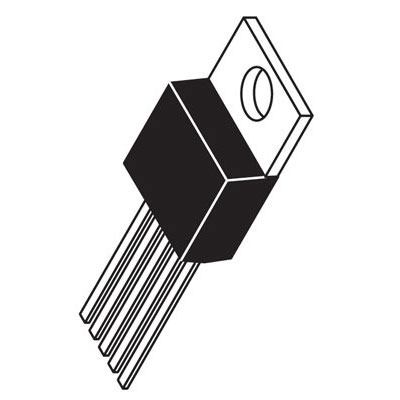

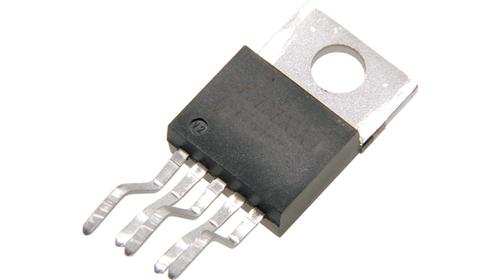

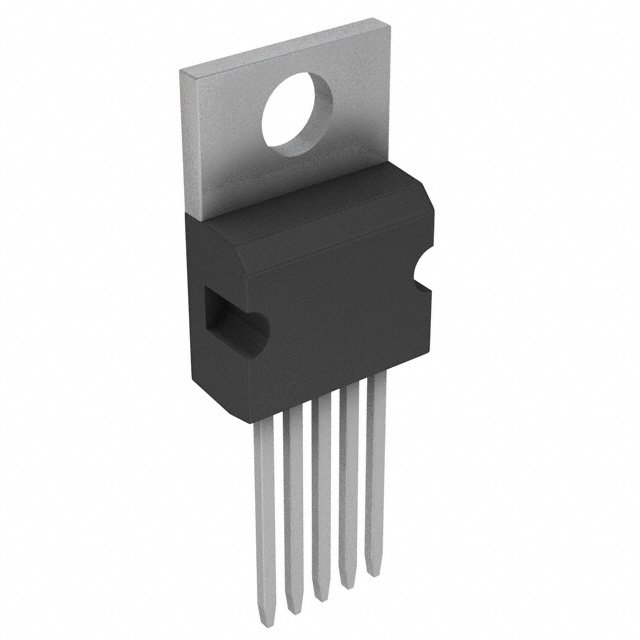

封装 TO-220-5
长度 10.16 mm
宽度 4.7 mm
高度 8.89 mm
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2991T/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2991T 德州仪器 | 类似代替 | LM2991T/NOPB和LM2991T的区别 |
LM2991T/LB03 德州仪器 | 类似代替 | LM2991T/NOPB和LM2991T/LB03的区别 |
