LDO(低压降)线性稳压器,600mA 至 800mA,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,600mA 至 800mA,Texas Instruments
得捷:
IC REG LINEAR 2.5V 800MA DDPAK
立创商城:
LP3961ES-2.5/NOPB
德州仪器TI:
800-mA, high-accuracy, low-dropout voltage regulator with enable
欧时:
Texas Instruments LP3961ES-2.5/NOPB LDO 稳压器, 2.5 V输出, 800mA最大输出, ±1.5%精确度
贸泽:
低压差稳压器 800Ma Ultra-LDO
艾睿:
Control the voltage level of your circuit with this LDO LP3961ES-2.5/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.024@80mA|0.24@800mA V. This voltage regulation device&s;s single output can produce a current up to 0.8 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 7 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.02%Typ and line regulation of 0.02%Typ. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. The maximum dropout voltage is 0.03@80mA|0.3@800mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Chip1Stop:
LDO Regulator Pos 2.5V 0.8A 6-Pin5+Tab TO-263 Tube
Verical:
LDO Regulator Pos 2.5V 0.8A 6-Pin5+Tab TO-263 Tube
Newark:
# TEXAS INSTRUMENTS LP3961ES-2.5/NOPB Fixed LDO Voltage Regulator, 2.5V to 7V, 240mV Dropout, 2.5Vout, 800mAout, TO-263-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 800mA DDPAK/TO-263-5
容差 ±3 %
输出接口数 1
输入电压DC 7.00V max
输出电压 2.5 V
输出电流 800 mA
供电电流 9mA ~ 15mA
静态电流 0.015 mA
输出电容类型 Ceramic
跌落电压 240 mV
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电压Min 2.5 V
输出电流Max 800 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤7 V
安装方式 Surface Mount
引脚数 5

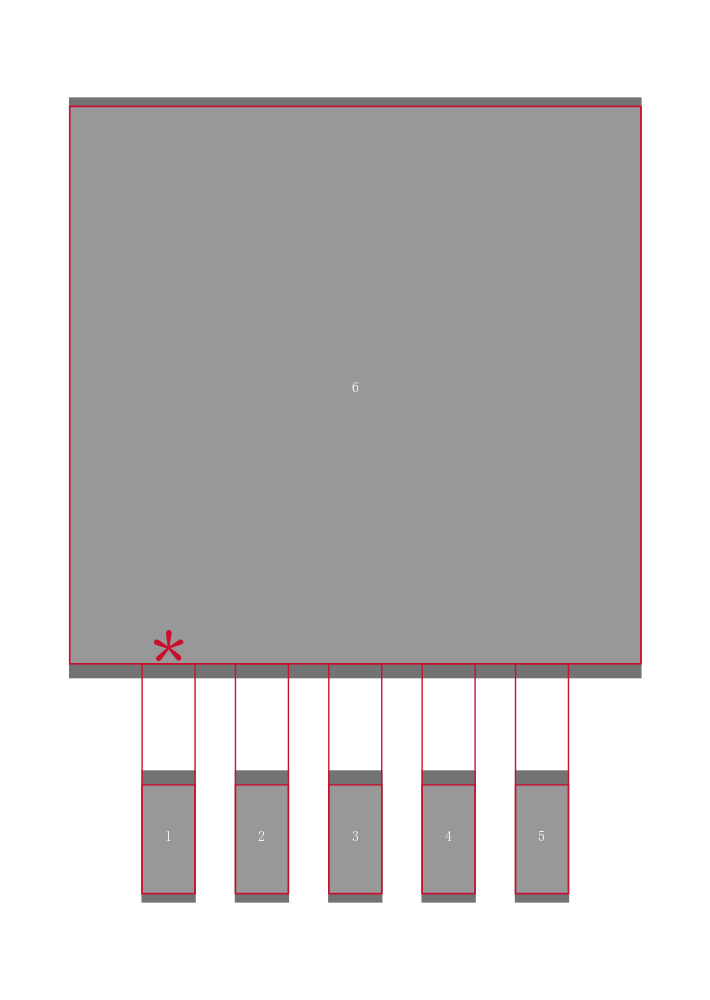

封装 TO-263-6
长度 14.35 mm
宽度 10.16 mm
高度 4.57 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3961ES-2.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3961ES-2.5 德州仪器 | 类似代替 | LP3961ES-2.5/NOPB和LP3961ES-2.5的区别 |
LP3961ESX-2.5 德州仪器 | 类似代替 | LP3961ES-2.5/NOPB和LP3961ESX-2.5的区别 |
LP3961ESX-2.5/NOPB 德州仪器 | 功能相似 | LP3961ES-2.5/NOPB和LP3961ESX-2.5/NOPB的区别 |
