LTC2934IDC-1#TRMPBF

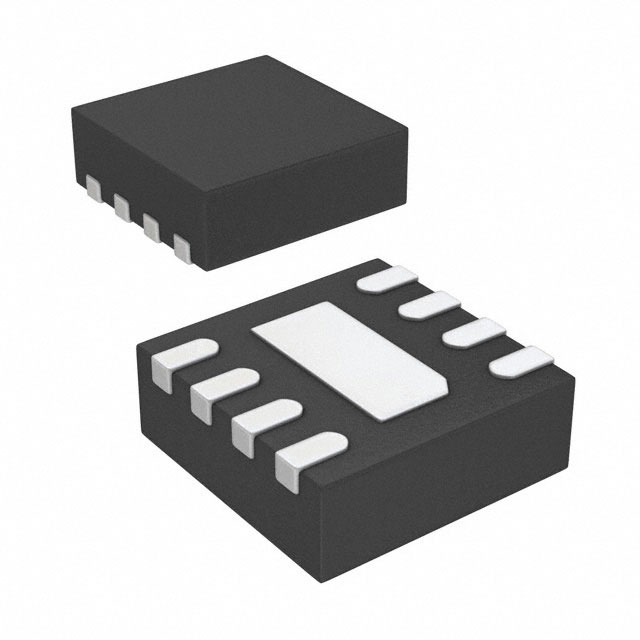

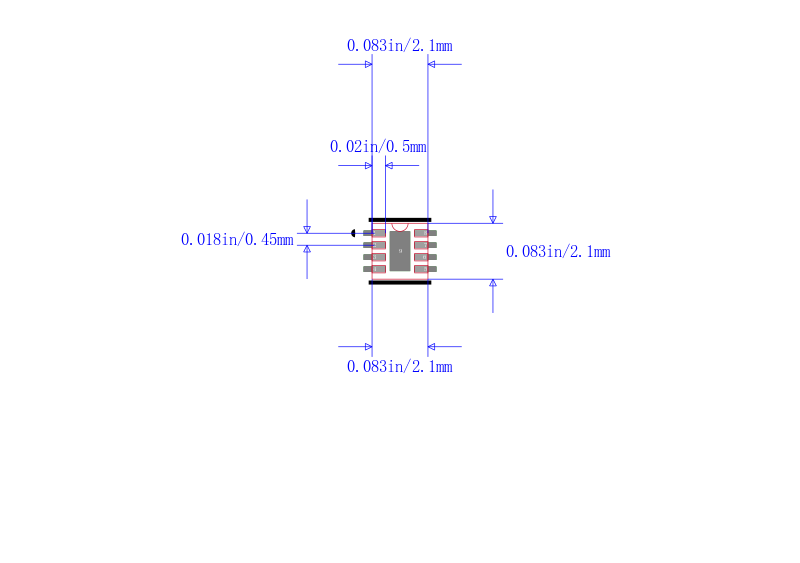

LINEAR TECHNOLOGY  LTC2934IDC-1#TRMPBF  监控器, 低电平有效复位, 1.6V-5.5V输入, DFN-8

The is an ultralow Power Adjustable Supervisor with power-fail and open-drain output. The power voltage monitor provides system initialization, power-fail warning and reset generation functions. Low quiescent current 500nA typical makes the LTC2934 an ideal choice for battery-operated applications. Precision power-fail and reset voltages can be configured independently. Early warning of an impending low voltage condition is provided at the power-fail output PFO\\ when the PFI input falls below 0.4V. Supervisory circuits monitor the ADJ input and pull RST\ low when ADJ falls below 0.4V. When ADJ is rising from an under-threshold condition, an internal reset timer is started after exceeding the ADJ threshold by 5%. The reset timeout delays the return of the RST\ output to a high state. A pushbutton switch connected to the MR\ input is typically used to force a manual reset.

.

Adjustable reset threshold

.

Adjustable power-fail threshold

.

Early warning power-fail output

.

Manual reset input

.

500nA Quiescent current

.

±1.5% Maximum accuracy over-temperature
