开关稳压器 Seamless Transition Buck-Boost DC/DC regulator for RF Power Amplifiers 12-DSBGA -30 to 85
The LM3209-G3 is buck-boost DC/DC converter designed to generate output voltages above or below a given input voltage. It is particularly suitable for single-cell Li-ion batteries for portable applications.
The LM3209-G3 operates at a 2.4 MHz typical switching frequency in full synchronous operation providing seamless transitions between buck and boost operating modes.
The power converter topology needs only one external inductor and two capacitors. Five internal power switches enable high overall efficiency.
The LM3209-G3 is internally compensated for buck and boost modes of operation, thus providing an optimal transient response.

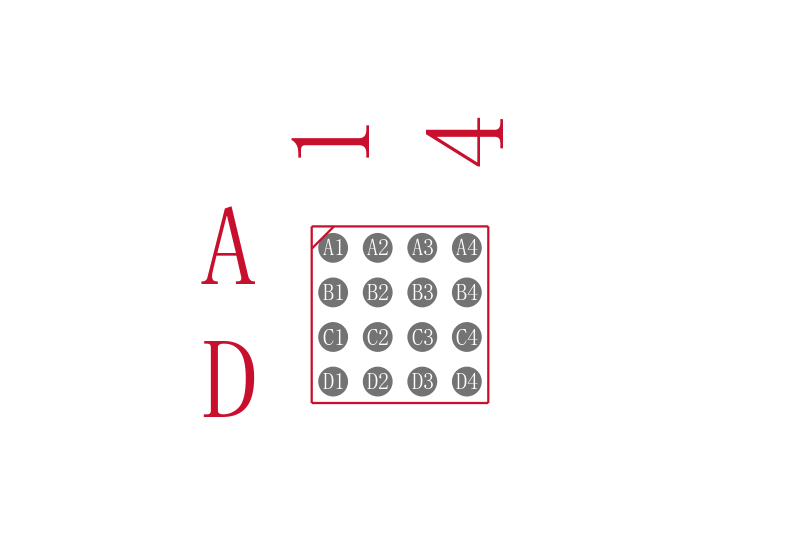

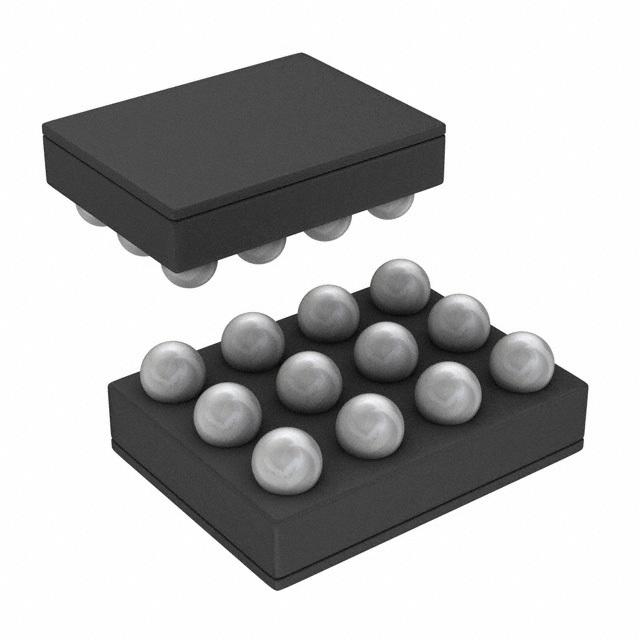

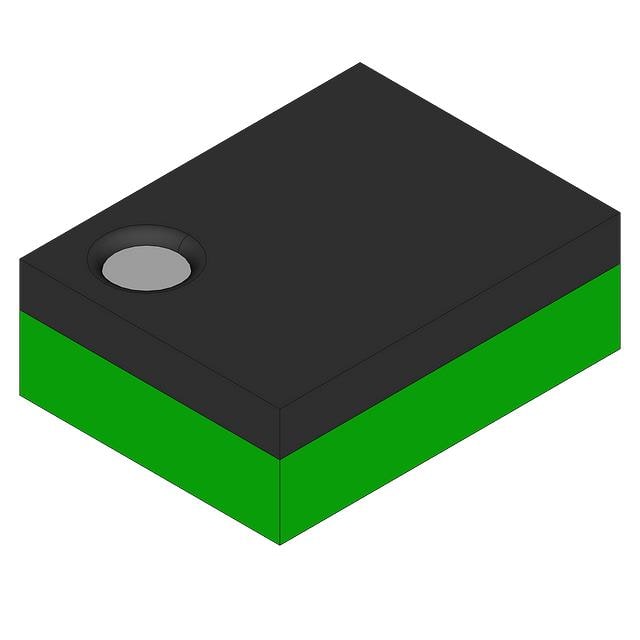

The LM3209-G3 is available in an 12-bump lead-free DSBGA package of size 2.0 mm × 2.5 mm × 0.6 mm.
输出接口数 1
输出电压 0.6V ~ 4.2V
输出电流 650 mA
开关频率 2.4 MHz
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Max 4.2 V
输出电压Min 0.6 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -30 ℃
输入电压 5.5 V
安装方式 Surface Mount

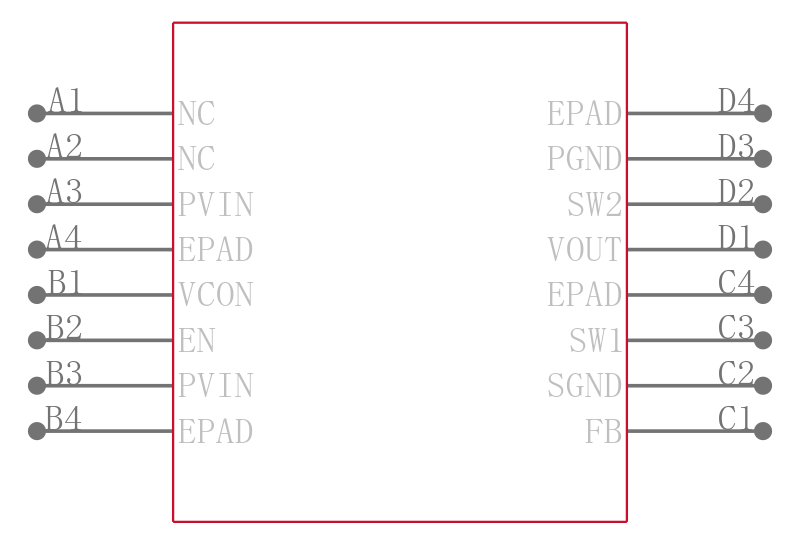

引脚数 12
封装 DSBGA-12
封装 DSBGA-12
工作温度 -30℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM3209TLE-G3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3209TLX-G3/NOPB 德州仪器 | 完全替代 | LM3209TLE-G3/NOPB和LM3209TLX-G3/NOPB的区别 |
