具有使能功能的 800mA、高精度、低压降稳压器 5-DDPAK/TO-263 -40 to 125
Make a theoretical system actual by providing stable voltages with this LDO linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.024@80mA|0.24@800mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device"s single output can produce a current up to 0.8 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 7 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Using a load regulation of 0.02%Typ and line regulation of 0.02%Typ is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.03@80mA|0.3@800mA V.
输出接口数 1
输出电压 2.5 V
输出电流 800 mA
供电电流 9mA ~ 15mA
静态电流 4.00 mA
输出电容类型 Ceramic
跌落电压 0.24V @800mA
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电压Min 2.5 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±1.5 %
输入电压 ≤7 V
安装方式 Surface Mount

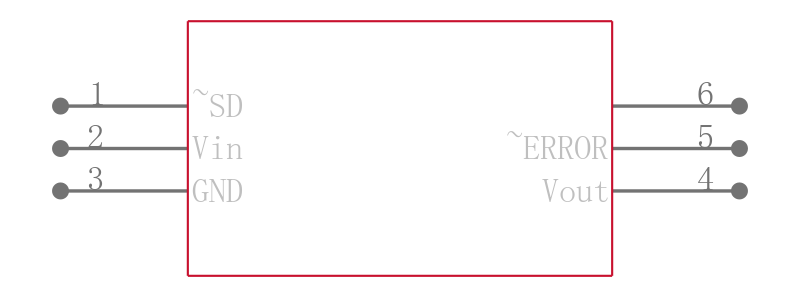

引脚数 6
封装 TO-263-5
封装 TO-263-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3961ESX-2.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3961ES-2.5 德州仪器 | 类似代替 | LP3961ESX-2.5/NOPB和LP3961ES-2.5的区别 |
LP3961ESX-2.5 德州仪器 | 类似代替 | LP3961ESX-2.5/NOPB和LP3961ESX-2.5的区别 |
LP3961ES-2.5/NOPB 德州仪器 | 功能相似 | LP3961ESX-2.5/NOPB和LP3961ES-2.5/NOPB的区别 |
