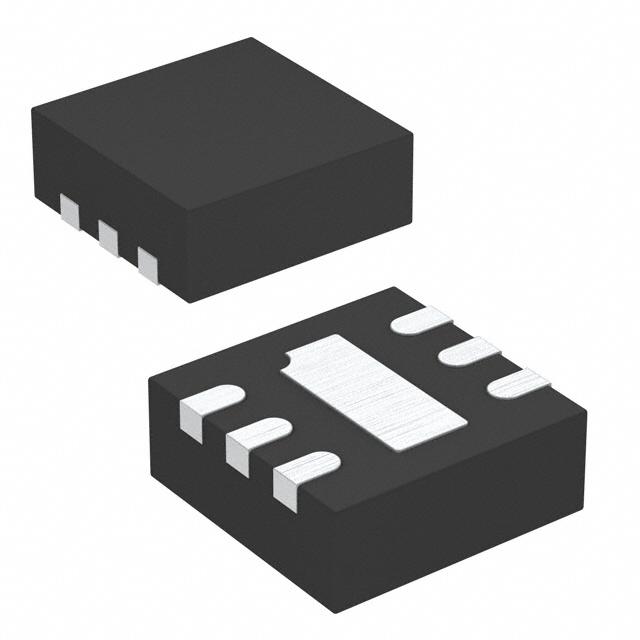

Charge Pump Switching Regulator IC Positive Fixed 5V 1 Output 150mA 6-WFDFN Exposed Pad
Are you working with different voltages, and DC current? This charge pump voltage doubler from will properly provide various voltages. Its output produces a current of 150Max mA. With an output that has a voltage of 5 V, this is power management at its best. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a minimum operating supply voltage of 2.7 V and a maximum of 5.5 V. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 5.50V max
输出接口数 1
输出电压 5 V
输出电流 150 mA
开关频率 1.2 MHz
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Min 5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 DFN-6
封装 DFN-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3204BEDC-5#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3204BEDC-5#TRMPBF 凌力尔特 | 完全替代 | LTC3204BEDC-5#TRPBF和LTC3204BEDC-5#TRMPBF的区别 |
LTC3204BEDC-5#PBF 凌力尔特 | 类似代替 | LTC3204BEDC-5#TRPBF和LTC3204BEDC-5#PBF的区别 |
