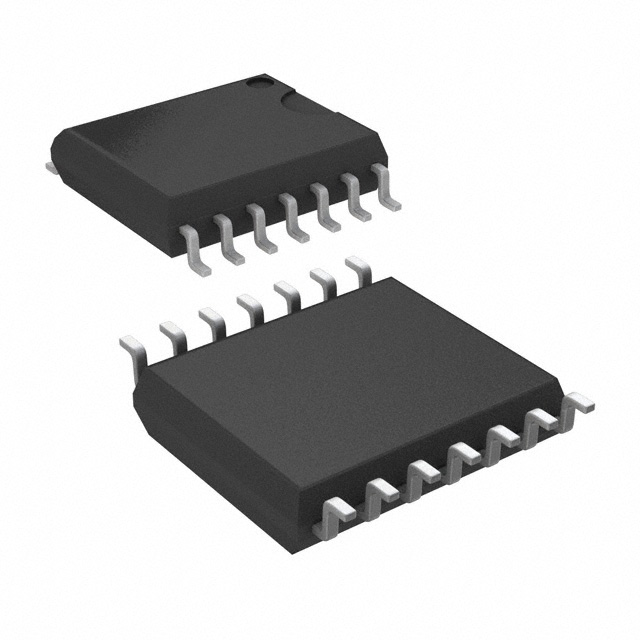

直流-直流开关降压稳压器, 可调, 4V-60V输入, 3.3V-37V/500mA输出, SOIC-14
Description
The LM2574xx series of regulators are monolithic integrated circuits that provide all the active functions for a step-down buck switching regulator, capable of driving a 0.5-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, 15 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed frequency oscillator.
Features
• 3.3-V, 5-V, 12-V, 15-V, and Adjustable Output Versions
• Adjustable Version Output Voltage Range: 1.23 V to 37 V 57 V for HV version ±4% Maximum Over Line and Load Conditions
• Specified 0.5-A Output Current
• Wide Input Voltage Range: 40 V, up to 60 V for HV Version
• Requires Only 4 External Components
• 52-kHz Fixed-Frequency Internal Oscillator
• TTL Shutdown Capability, Low-Power Standby Mode
• High Efficiency
• Uses Readily Available Standard Inductors
• Thermal Shutdown and Current-Limit Protection
Applications
• Simple High-Efficiency Step-Down Buck Regulator
• Efficient Preregulator for Linear Regulators
• On-Card Switching Regulators
• Positive-to-Negative Converter Buck-Boost
输出接口数 1
输出电压 1.23V ~ 57V
输出电流 500 mA
针脚数 14
静态电流 5.00 mA
调节输出数 1
开关频率 52 kHz
拓扑结构 Buck
输入电压Max 60 V
输入电压Min 4 V
输出电压Max 37 V
输出电压Min 1.23 V
工作温度Max 125 ℃
电源电压 4 V
输入电压 4V ~ 60V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
封装 SOIC-14
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2574HVMX-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2574HVM-ADJ 德州仪器 | 完全替代 | LM2574HVMX-ADJ/NOPB和LM2574HVM-ADJ的区别 |
LM2574HVMX-ADJ 德州仪器 | 完全替代 | LM2574HVMX-ADJ/NOPB和LM2574HVMX-ADJ的区别 |
LM2574MX-ADJ/NOPB 德州仪器 | 类似代替 | LM2574HVMX-ADJ/NOPB和LM2574MX-ADJ/NOPB的区别 |
