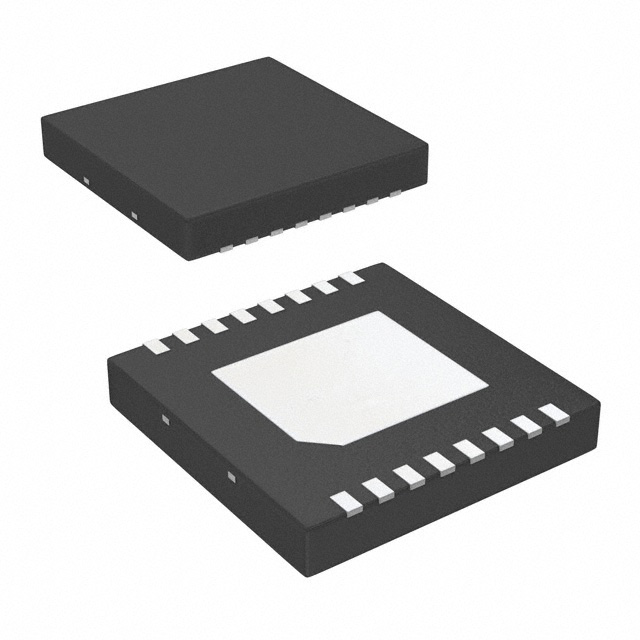

具有 P 或 N 沟道钳位 FET 和 CS 重启计时器的 100V 有源钳位电流模式 PWM 控制器 16-WSON
Safely supply current to an external system with this current controller from Texas Instruments. This current mode controller supports forward topology. Its 2 PWM outputs produce a current of 3000 mA. It has a switching frequency of 590Typ kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This current mode controller"s maximum duty cycle is 80Typ %. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 100V max
输出接口数 2
输出电流 3000 mA
供电电流 4.2 mA
上升时间 20 ns
开关频率 200kHz ~ 590kHz
占空比 80 %
最大占空比 70 %
下降时间 15 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 13V ~ 100V
安装方式 Surface Mount

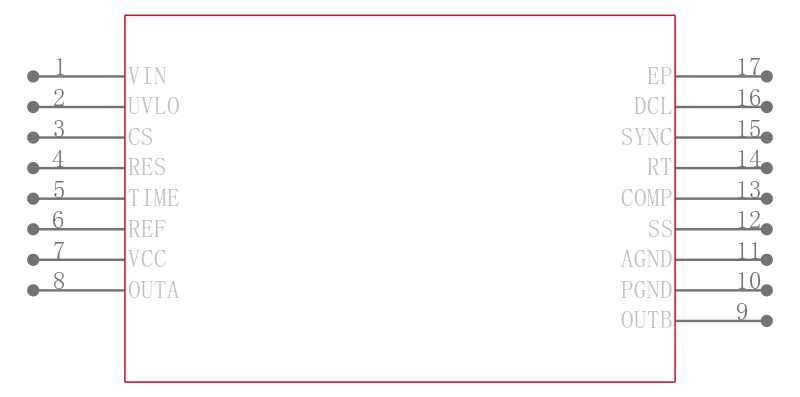

引脚数 16

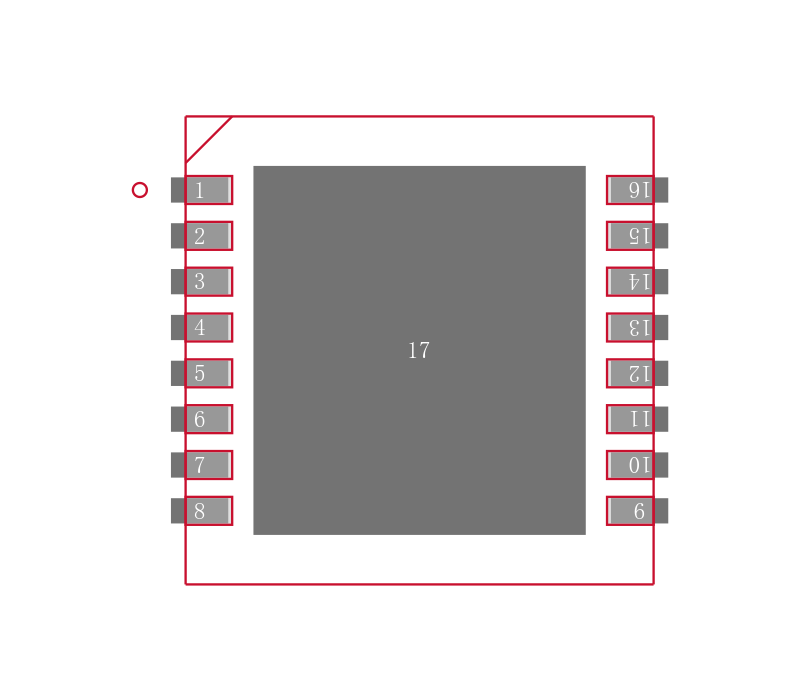

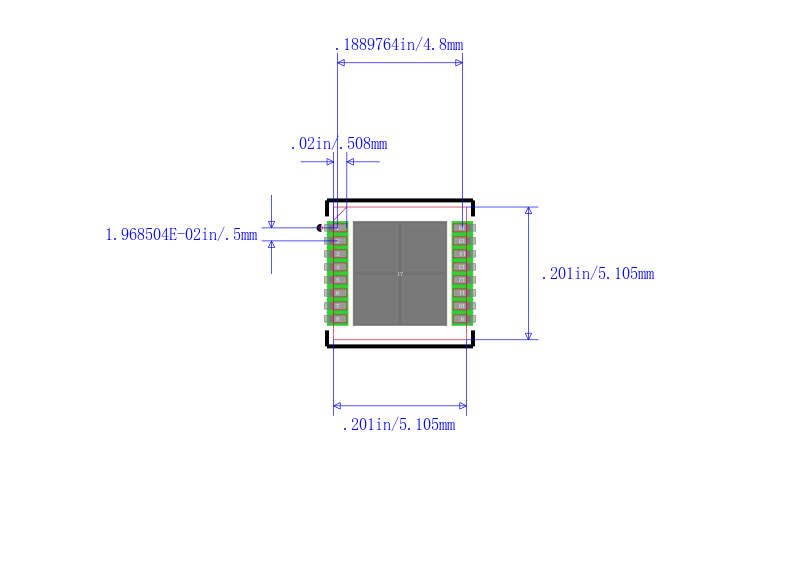

封装 WFDFN-16
封装 WFDFN-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5026SD/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5026SDX/NOPB 德州仪器 | 类似代替 | LM5026SD/NOPB和LM5026SDX/NOPB的区别 |
LM5026SD 德州仪器 | 类似代替 | LM5026SD/NOPB和LM5026SD的区别 |
