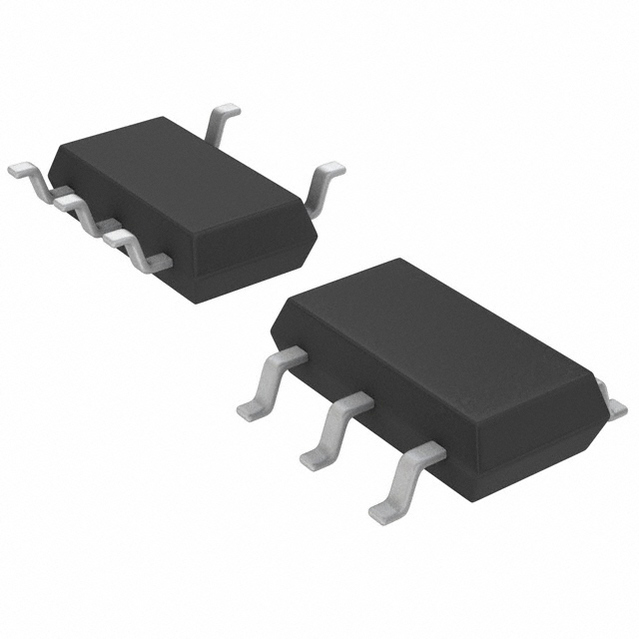

开关稳压器 LT1613 - 1.4MHz, Single Cell DC/DC Converter in 5-Lead SOT-23
Adjust the voltage level of your devices with this step up DC to DC converter from . This converter has single output. It only needs a voltage of at least 0.9 V while not exceeding 10 V to effectively power your circuit. With an adjustable output that has a voltage of 36Max V, this is power management at its best. It has a switching frequency of 1800 kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This converter has a minimum operating temperature of 0 °C and a maximum of 70 °C.
电源电压DC 5.00 V
输出接口数 1
输出电压 1.23V ~ 36V
输出电流 300 mA
静态电流 3 mA
开关频率 1.4 MHz
输入电压Max 10 V
输入电压Min 0.9 V
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 1.1V ~ 10V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 1 mm
封装 TSOT-23-5
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
