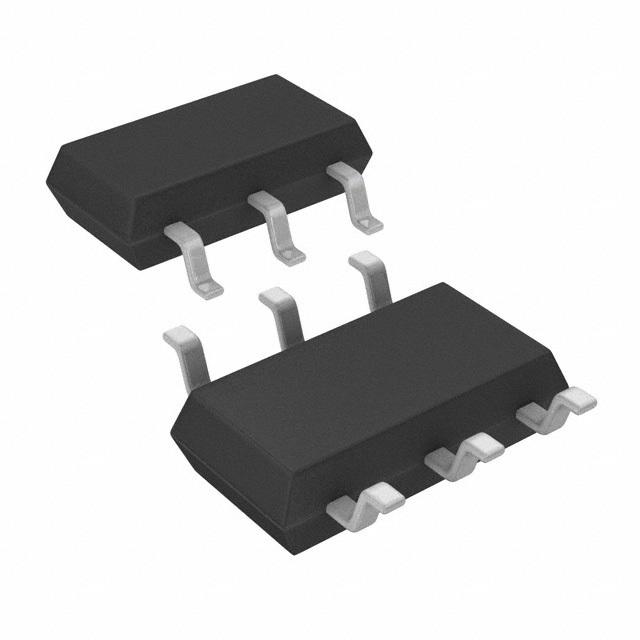

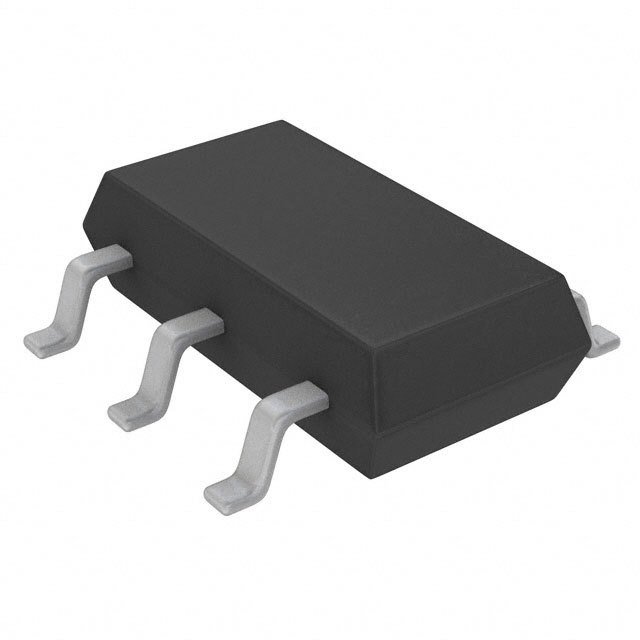

Series Voltage Reference IC ±0.1% 5mA SOT-23-6 Thin, TSOT-23-6
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. This will operate at a maximum voltage of 20 V, making it easy to control the power in your circuit. With an output that has a voltage of 2.5 V, this is power management at its best. It has an initial accuracy of 0.1%. Operate at a constant current by utilizing the load regulation of 160ppm/mA and line regulation of 170ppm/V. This voltage reference circuit supports series topology. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage reference circuit has an operating temperature range of -40 °C to 85 °C. It runs with a maximum temperature coefficient of 25ppm/°C.
容差 ±0.1 %
输入电压DC 20.0V max
输出电压 2.5 V
输出电流 5 mA
供电电流 80 µA
通道数 1
静态电流 60.0 µA
输入电压Max 20 V
输出电压Min 2.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 3V ~ 18V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃ TA
温度系数 ±25 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1790BIS6-2.5#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1790BIS6-2.5#TRMPBF 凌力尔特 | 完全替代 | LT1790BIS6-2.5#TRPBF和LT1790BIS6-2.5#TRMPBF的区别 |
