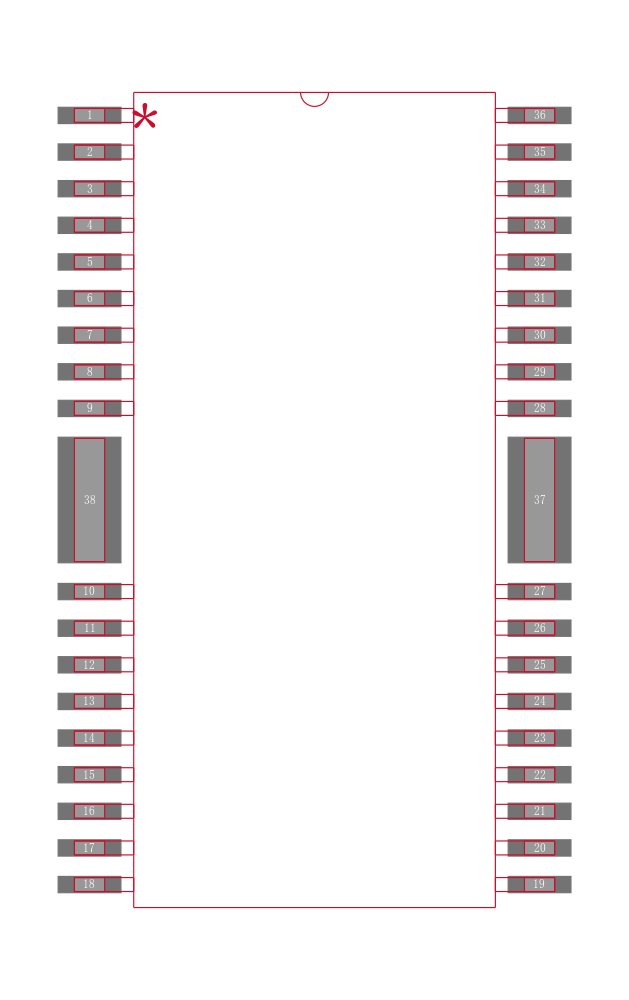

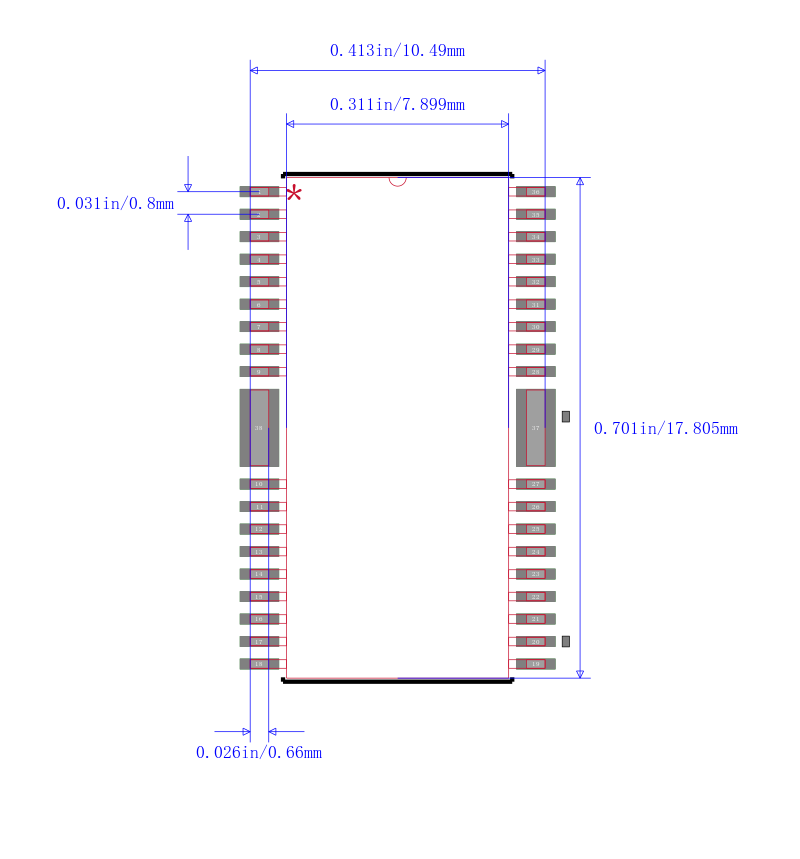

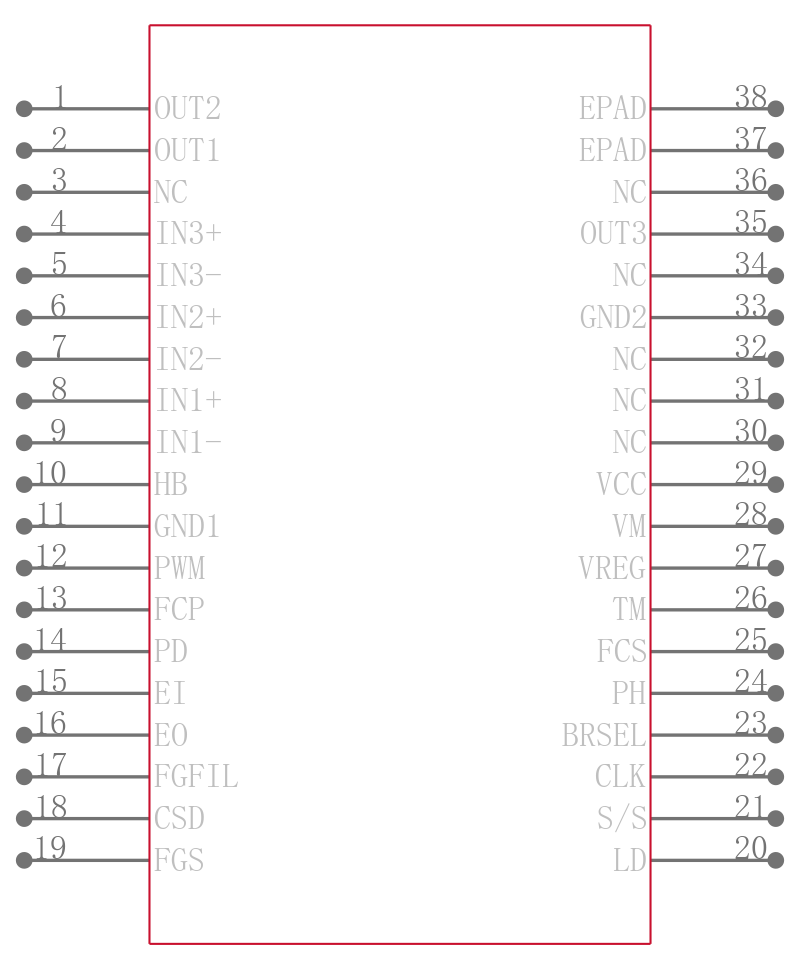

LB11873-TRM-E

对于多面反射镜电机三相无刷电机驱动器 For Polygonal Mirror Motors Three-Phase Brushless Motor Driver

The LB11873 is a 3-phase brushless motor driver developed for driving the polygonal mirror motor used in plain-paper copiers and similar products. This IC can implement the circuits required for polygonal mirror motor drive speed control and driver circuits in a single chip. The LB11873 implements low-noise/low-vibration PWM drive by changing the current at phase switching gradually to reduce motor noise.

Features

---

 |

.

Three-phase bipolar drive quiet direct PWM

.

PLL speed control circuit

.

Hall sensor FG support

.

Dedicated external clock

.

Brake mode switching circuit free running and reverse braking

.

Phase lock detection output with masking function

.

Built-in current limiter, constraint protection, undervoltage protection, thermal protection, and CLK line disconnection protection circuits

.

Input pins support 3V system microcontrollers
