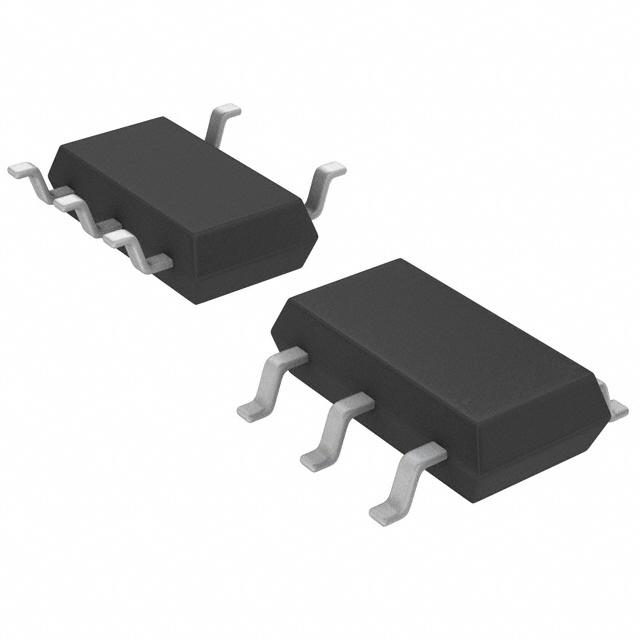

LINEAR TECHNOLOGY LTC4054ES5-4.2#TRMPBF Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 6.5V input, 4.2V/800mA charge, SOT-23-5
This smart battery charger charge controller from operates to optimize your battery"s performance. With an output that has a voltage of 4.2 V, this is power management at its best. Its output produces a current of 500 mA. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device runs on Li-Ion. This battery gauge has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 4.25 V and a maximum of 6.5 V.
电源电压DC 6.50V max
输入电压DC 6.50 V
输出电压 4.2 V
输出电流 500 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.25V ~ 6.5V
电源电压Max 6.5 V
输入电压 6.5 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 0.9 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active

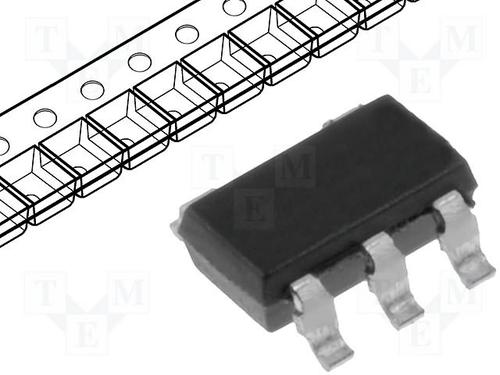

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC4054ES5-4.2#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4054ES5-4.2#TRPBF 凌力尔特 | 完全替代 | LTC4054ES5-4.2#TRMPBF和LTC4054ES5-4.2#TRPBF的区别 |
