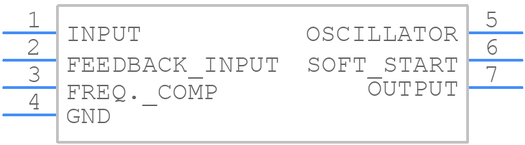

L4960H

2.5A电源开关稳压器 2.5A POWER SWITCHING REGULATOR

DESCRIPTION

The L4960 is a monolithic power switching regulator delivering 2.5A at a voltage variable from 5V to 40V in step down configuration.

Features of the device include current limiting, soft start, thermal protection and 0 to 100% duty cycle for continuous operation mode.

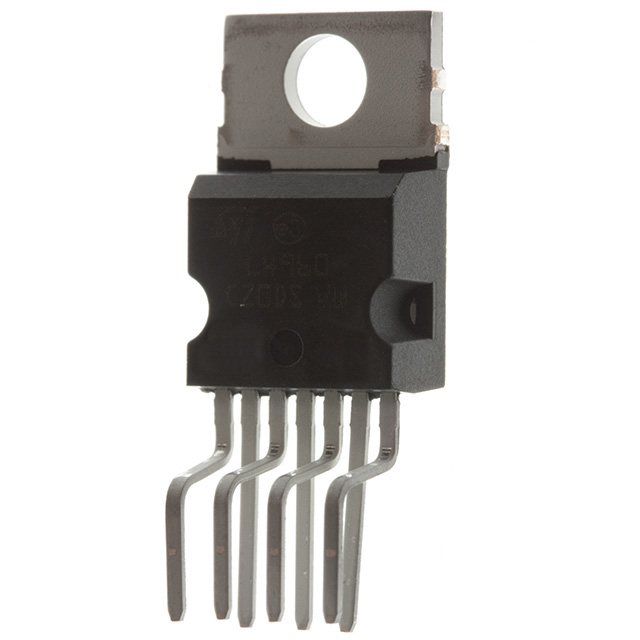

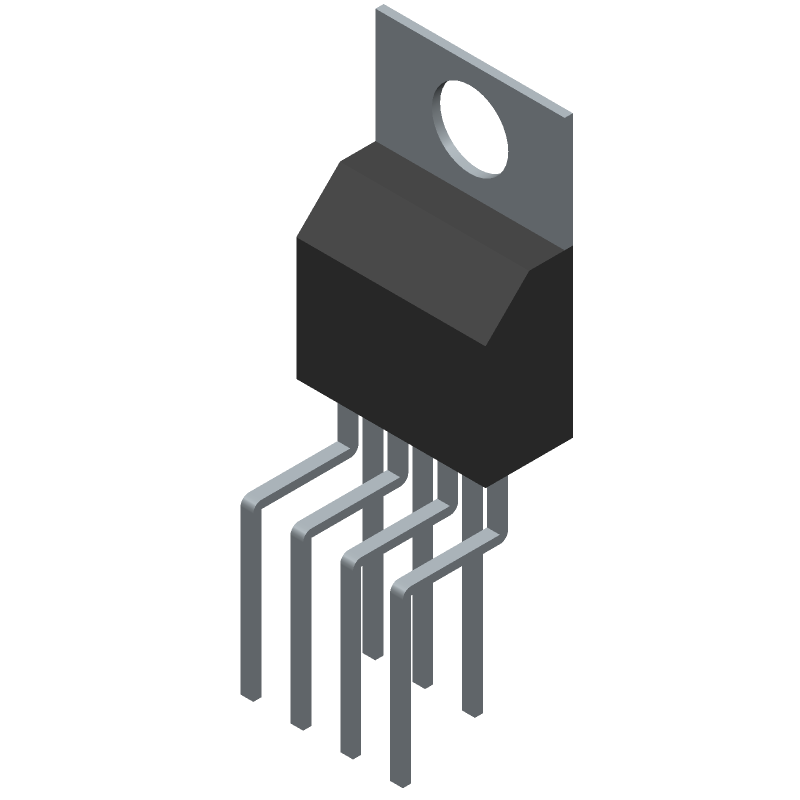

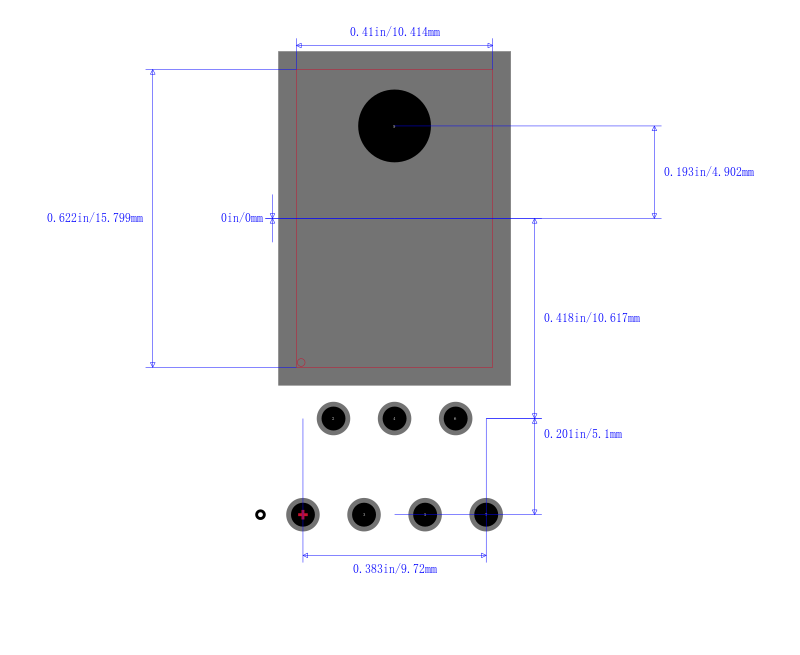

TheL4960 is mountedina Heptawattplastic power package and requires very few external components.

Efficient operation at switching frequencies up to 150KHz allows a reduction in the size and cost of external filter components.

■ 2.5A OUTPUT CURRENT

■ 5.1V TO 40V OPUTPUT VOLTAGE RANGE

■ PRECISE ± 2% ON-CHIP REFERENCE

■ HIGH SWITCHING FREQUENCY

■ VERY HIGH EFFICIENCY UP TO 90%

■ VERY FEW EXTERNAL COMPONENTS

■ SOFT START

■ INTERNAL LIMITING CURRENT

■ THERMAL SHUTDOWN
