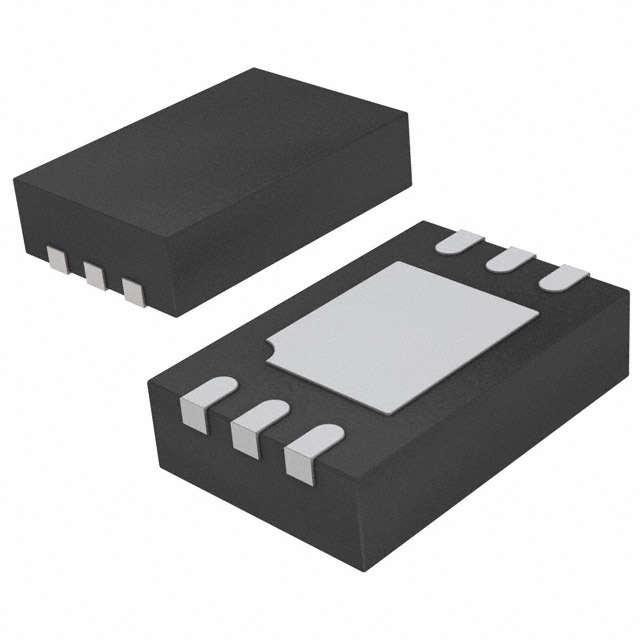

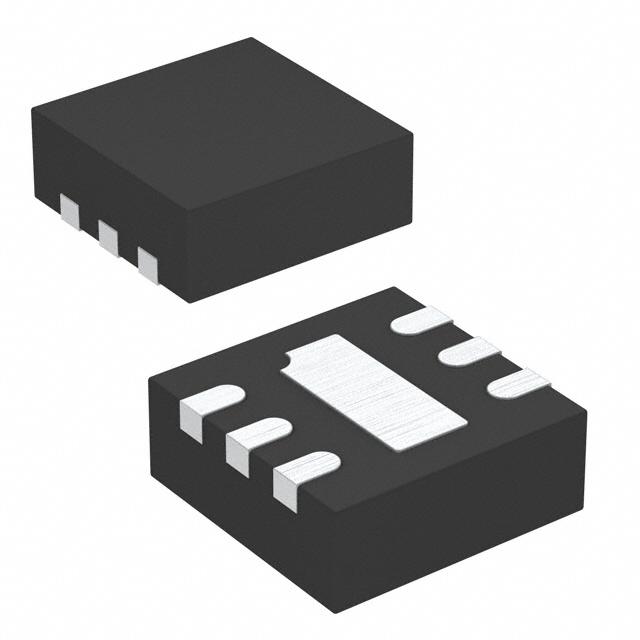

低压差稳压器 500mA VLDO in 2x2 DFN
This LDO linear regulator from acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.09@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. This will operate at a minimum voltage of 2 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Users like the load regulation of -1.5mVTyp and line regulation of 0.32mVTyp. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.13@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
跌落电压 0.09V @500mA
输入电压Max 5.5 V
输入电压Min 2 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 WFDFN-6
封装 WFDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3025IDC-4#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3025IDC-4#TRPBF 凌力尔特 | 功能相似 | LTC3025IDC-4#TRMPBF和LTC3025IDC-4#TRPBF的区别 |
LTC3025EDC-4#TRPBF 凌力尔特 | 功能相似 | LTC3025IDC-4#TRMPBF和LTC3025EDC-4#TRPBF的区别 |
