开关稳压器 LTC3200 - Low Noise, Regulated Charge Pump DC/DC Converters
DESCRIPTION
The LTC®3200/LTC3200-5 are low noise, constant frequency switched capacitor voltage doublers. They produce a regulated output voltage from a 2.7V to 4.5V input with up to 100mA of output current. Low external parts count one flying capacitor and two small bypass capacitors at VIN and VOUT make the LTC3200/LTC3200-5 ideally suited for small, battery-powered applications.
FEATURES
■ Low Noise Constant Frequency Operation
■ Output Current: 100mA

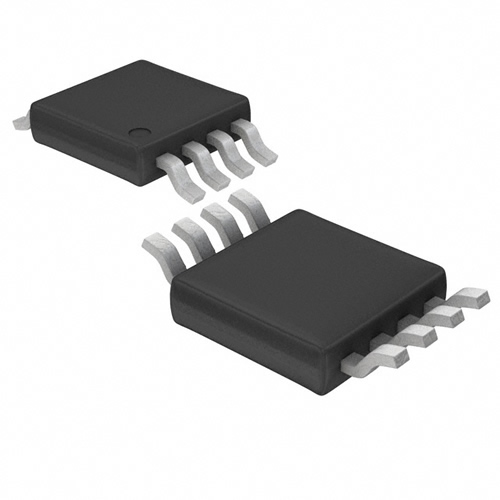

■ Available in 8-Pin MSOP LTC3200 and Low Profile 1mm 6-Pin ThinSOTTM LTC3200-5 Packages
■ 2MHz Switching Frequency
■ Fixed 5V ±4% Output LTC3200-5 or ADJ
■ VIN Range: 2.7V to 4.5V
■ Automatic Soft-Start Reduces Inrush Current
■ No Inductors
■ ICC<1µA in Shutdown
APPLICATION
■ White LED Backlighting
■ Li-Ion Battery Backup Supplies
■ Local 3V to 5V Conversion
■ Smart Card Readers
■ PCMCIA Local 5V Supplies
