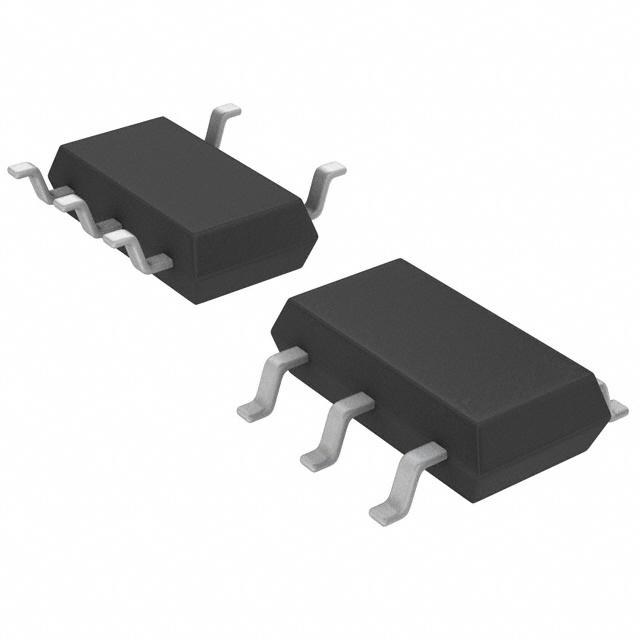

Boost, Flyback, SEPIC Switching Regulator IC Positive Adjustable 1.23V 1 Output 550mA Switch SOT-23-5 Thin, TSOT-23-5
Adjust the voltage level of your devices with this step up DC to DC converter from . This converter has single output. Use this part at voltages between 0.9 V and 10 V. With an adjustable output that has a voltage of 36Max V, this is power management at its best. Its switching regulator has a frequency of 1800 kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This converter has a minimum operating temperature of 0 °C and a maximum of 70 °C.
输出接口数 1
输出电压 1.23V ~ 36V
输出电流 800 mA
开关频率 1.4 MHz
输入电压Max 10 V
输入电压Min 0.9 V
输出电压Max 34 V
输出电压Min 1.23 V
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 1.1V ~ 10V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 0.9 mm
封装 TSOT-23-5
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1613CS5#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1613CS5#TRMPBF 凌力尔特 | 类似代替 | LT1613CS5#TRPBF和LT1613CS5#TRMPBF的区别 |
