LT3027EDD#PBF

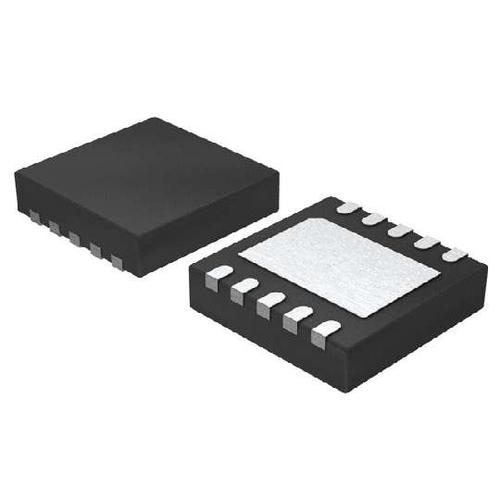

LINEAR TECHNOLOGY  LT3027EDD#PBF  芯片, 稳压器, LDO, 双路, 可调, 0.3VDO, 0.1A, 10DFN

The is a dual micro-power low noise low-dropout Regulator with independent inputs. With an external 0.01µF bypass capacitor, output noise is a low 20µVRMS over a 10Hz to 100kHz bandwidth. Designed for use in battery-powered systems, the low 25µA quiescent current per channel makes it an ideal choice. In shutdown, quiescent current drops to less than 0.1µA. Shutdown control is independent for each channel, allowing for flexibility in power management. The device is capable of operating over an input voltage from 1.8 to 20V and can supply 100mA of output current from each channel with a dropout voltage of 300mV. Quiescent current is well controlled in dropout. The regulator is stable with output capacitors as low as 1µF. Small ceramic capacitors can be used without the series resistance required by other regulator. Internal protection circuitry includes reverse battery protection, current limiting and thermal limiting protection.

.

Reverse battery protected

.

No protection diodes needed

.

Overcurrent and overtemperature protected

.

Tracking/sequencing capability
