LINEAR TECHNOLOGY LTC2915HDDB-1#TRMPBF 监控器, 低电平有效复位, 1.5V-5.5V输入, DFN-8
The is a low-voltage single-supply Voltage Supervisor with 27 selectable thresholds. The parts operate from 1.5 to 5.5V and consume a quiescent current of only 30µA. Two three-state inputs select one of nine internally programmed thresholds without the need for external resistors. For the LTC2915, an additional three-state input determines the tolerance -5%, -10%, -15%. Threshold accuracy is guaranteed at ±1.5% over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false triggering. The reset timeout may be set to 200ms or adjusted using an external capacitor.
供电电流 45.0 µA
针脚数 8
阈值电压 Adjustable
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.5 V
安装方式 Surface Mount
引脚数 8

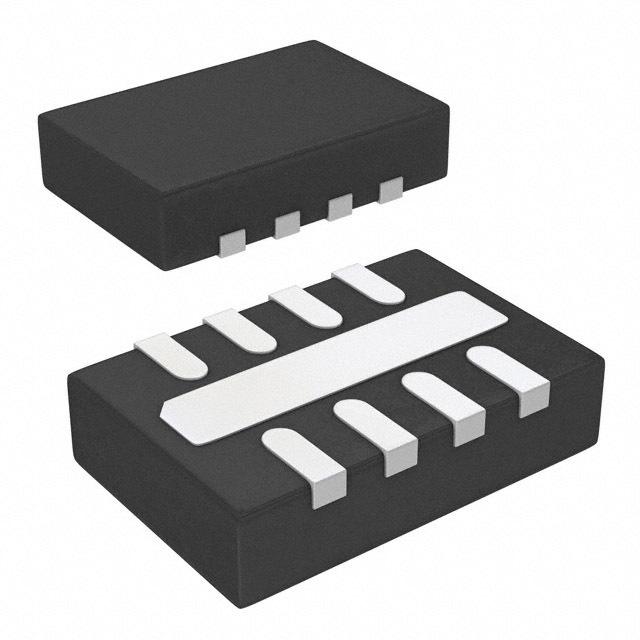

封装 DFN-8
高度 0.75 mm
封装 DFN-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Portable Devices, 通信与网络, Communications & Networking, 便携式器材, 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2915HDDB-1#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2915HTS8-1#TRMPBF 凌力尔特 | 完全替代 | LTC2915HDDB-1#TRMPBF和LTC2915HTS8-1#TRMPBF的区别 |
LTC2915HDDB-1#TRPBF 凌力尔特 | 完全替代 | LTC2915HDDB-1#TRMPBF和LTC2915HDDB-1#TRPBF的区别 |
LTC2915CDDB-1#TRMPBF 凌力尔特 | 类似代替 | LTC2915HDDB-1#TRMPBF和LTC2915CDDB-1#TRMPBF的区别 |
