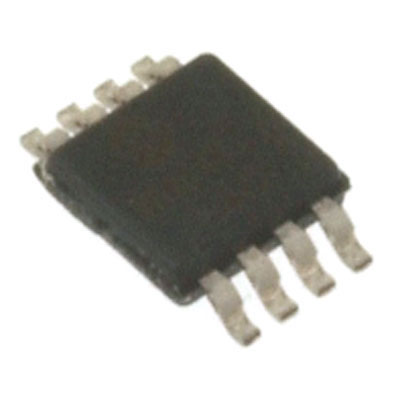

Conv DC-DC 2.45V to 16V Step Up Single-Out 34V 3.1A Automotive 8Pin MSOP Tube
Adjust the voltage level of your devices with this step up DC to DC converter from . This converter"s single output can produce a current up to 3.1 A. Use this part at voltages between 2.45 V and 16 V. With an adjustable output that has a voltage of 34Max V, this is power management at its best. Maintain a constant voltage level with a line regulation of 0.05%/V. This part offers a switching frequency of 1400 kHz in order to work properly. This converter has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电压 ≤34 V
输出电流 1.5 A
开关频率 1.2 MHz
输入电压Max 16 V
输入电压Min 2.45 V
输出电压Max 34 V
输出电压Min 2.45 V
输出电流Max 3.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.45 V
输入电压 2.45V ~ 16V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
封装 MSOP-8
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1946EMS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1946EMS8#TRPBF 凌力尔特 | 完全替代 | LT1946EMS8#PBF和LT1946EMS8#TRPBF的区别 |
