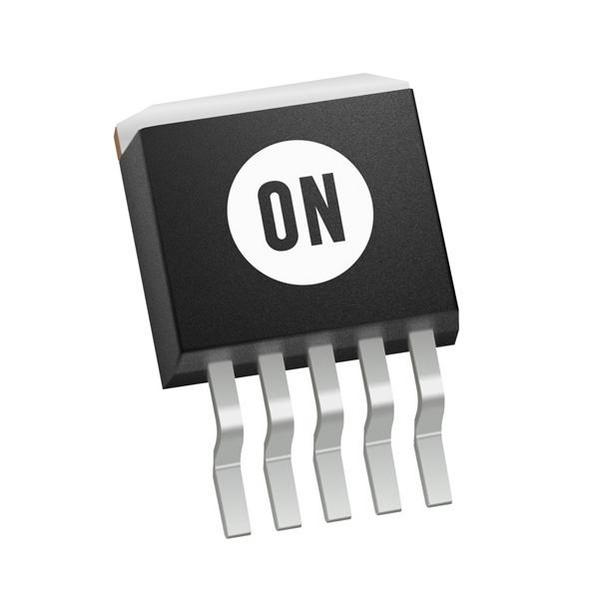

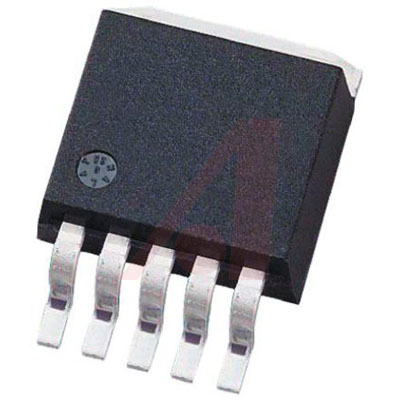

1A, 可调输出,降压型DC/DC变换器
开关稳压器,降压直流 - 直流转换器,
电流模式和电压模式直流-直流转换器,适用于降压(步降)、升压(步升)和回扫应用。
### 直流-直流控制器、转换器和稳压器,ON Semiconductor
得捷:
IC REG BUCK ADJ 1A D2PAK-5
立创商城:
升降压型 Vin=4.75V~40V Vout=1.23V~37V 1A
欧时:
ON Semiconductor LM2575D2T-ADJR4G 降压 开关稳压器, 4.75 → 40 V输入, 1A最大输出
e络盟:
DC/DC降压稳压器, 可调, 4.75V至40V, 1.23V至37V/1A输出, 52kHz, TO-263-5
艾睿:
Adjust the voltage level of your devices with this step down LM2575D2T-ADJR4G DC to DC converter from ON Semiconductor. This converter&s;s single output can produce a current up to 1 A. Use this part at voltages between 4.75 V and 40 V. With an adjustable output that has a voltage of 1.23 to 37 V, this is power management at its best. This converter is 77typ % efficient. It has a switching frequency of 52Typ kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
IC, Power; Regulator; Buck, Adjustable; ; 1.0A; D2PAK; Cut Tape
安富利:
Conv DC-DC Single Step Down 4.75V to 40V 6-Pin5+Tab D2PAK T/R
Chip1Stop:
Conv DC-DC Single Step Down 4.75V to 40V 6-Pin5+Tab D2PAK T/R
Verical:
Conv DC-DC 4.75V to 40V Step Down Single-Out 1.23V to 37V 1A 6-Pin5+Tab D2PAK T/R
力源芯城:
1A, 可调输出,降压型DC/DC变换器
DeviceMart:
IC REG BUCK ADJ 1A D2PAK
无卤素状态 Halogen Free
输出接口数 1
输出电压 1.23V ~ 37V
输出电流 1 A
针脚数 5
静态电流 9 mA
开关频率 52 kHz
拓扑结构 Step-Down
输入电压Max 40 V
输入电压Min 4.75 V
输出电压Max 37 V
输出电压Min 1.23 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.75 V
输入电压 4.75V ~ 40V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
长度 10.24 mm
宽度 9.347 mm
高度 9.347 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Negative Step-Up Converters, Simple and High-Efficiency Step-Down Buck Regulators, On-Card Switching Regulators, Positive to Negative Converters Buck-Boost, Power Supply for Battery Chargers, Efficient Pre-Regulator for Linear Regulators
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2575D2T-ADJR4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM2575D2T-ADJG 安森美 | 完全替代 | LM2575D2T-ADJR4G和LM2575D2T-ADJG的区别 |
LM2575D2T-ADJ 安森美 | 完全替代 | LM2575D2T-ADJR4G和LM2575D2T-ADJ的区别 |
LM2575D2T-ADJR4 安森美 | 完全替代 | LM2575D2T-ADJR4G和LM2575D2T-ADJR4的区别 |
