TEXAS INSTRUMENTS LP3891ES-1.2/NOPB 固定电压稳压器, LDO, 1.3V至5.5V, 100mV压差, 1.2V输出, 800mA输出, TO-263-5
LDO(低压降)线性稳压器,600mA 至 800mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.2V 800MA DDPAK
立创商城:
LP3891ES-1.2/NOPB
德州仪器TI:
800-mA, ultra-low-dropout voltage regulator with enable
欧时:
Texas Instruments LP3891ES-1.2/NOPB 快速低压降稳压器, 1.2 V输出, 800mA最大输出, ±1.5%精确度
e络盟:
固定电压稳压器, LDO, 1.3V至5.5V, 100mV压差, 1.2V输出, 800mA输出, TO-263-5
艾睿:
Stable power is ideal for better processing this LDO LP3891ES-1.2/NOPB linear regulator developed by Texas Instruments will help do so. Its typical dropout voltage at current is 0.1@800mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 0.8 A. This will operate at a minimum voltage of 1.3 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.04%/ATyp and line regulation of 0.01%/VTyp. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.3@800mA V.
Jameco:
Low Dropout Regulator 1.2 Volt 0.8A 6-Pin 5+Tab TO-263 Rail
安富利:
LDO Regulator Pos 1.2V 0.8A 6-Pin5+Tab TO-263 Rail
Verical:
LDO Regulator Pos 1.2V 0.8A 6-Pin5+Tab TO-263 Tube
Newark:
# TEXAS INSTRUMENTS LP3891ES-1.2/NOPB Fixed LDO Voltage Regulator, 1.3V to 5.5V, 100mV Dropout, 1.2Vout, 800mAout, TO-263-5
DeviceMart:
IC REG LDO 1.2V .8A TO-263-5
输出接口数 1
输入电压DC 5.50V max
输出电压 1.2 V
输出电流 800 mA
供电电流 30µA ~ 8mA
针脚数 5
静态电流 3 mA
跌落电压 100 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.3 V
输出电压Min 1.2 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 5.5V ~ 1.3V
安装方式 Surface Mount
引脚数 5

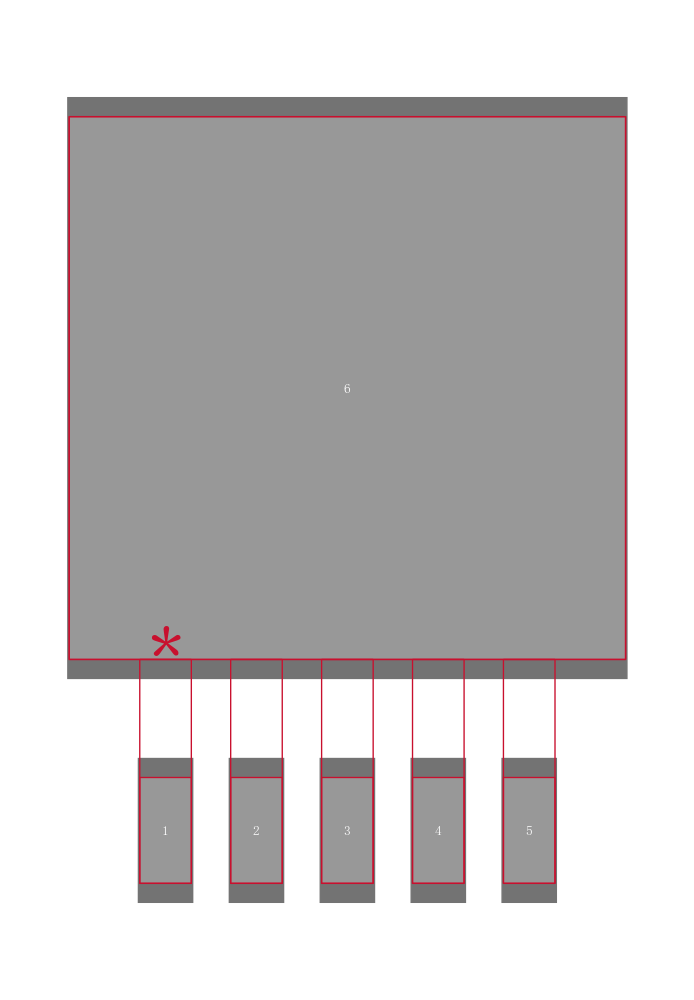

封装 TO-263-6
长度 10.16 mm
宽度 8.64 mm
高度 4.57 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3891ES-1.2/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3883ES-1.2 德州仪器 | 类似代替 | LP3891ES-1.2/NOPB和LP3883ES-1.2的区别 |
LP3891ESX-1.2/NOPB 德州仪器 | 类似代替 | LP3891ES-1.2/NOPB和LP3891ESX-1.2/NOPB的区别 |
LP3892ES-1.2 德州仪器 | 类似代替 | LP3891ES-1.2/NOPB和LP3892ES-1.2的区别 |
