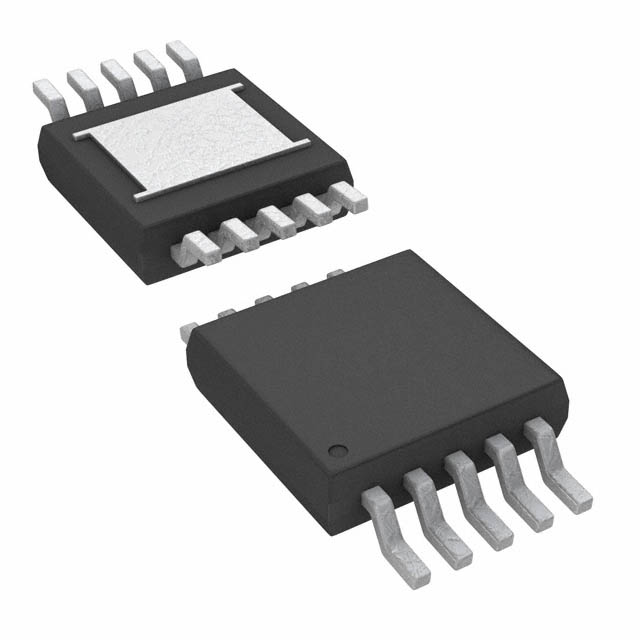

Driver 6A 1Out Non-Inv 10Pin MSOP EP
Transistors are a crucial component but for high powered designs this power driver by is a crucial component. This device has a maximum propagation delay time of 36typ ns. This gate driver has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 5 V and a maximum of 25 V.
电源电压DC 25.0V max
上升/下降时间 13ns, 8ns
输出接口数 1
输出电流 100 mA
下降时间Max 8 ns
上升时间Max 13 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5V ~ 25V
安装方式 Surface Mount

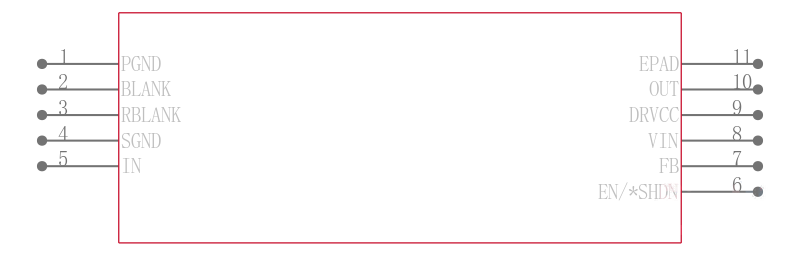

引脚数 10

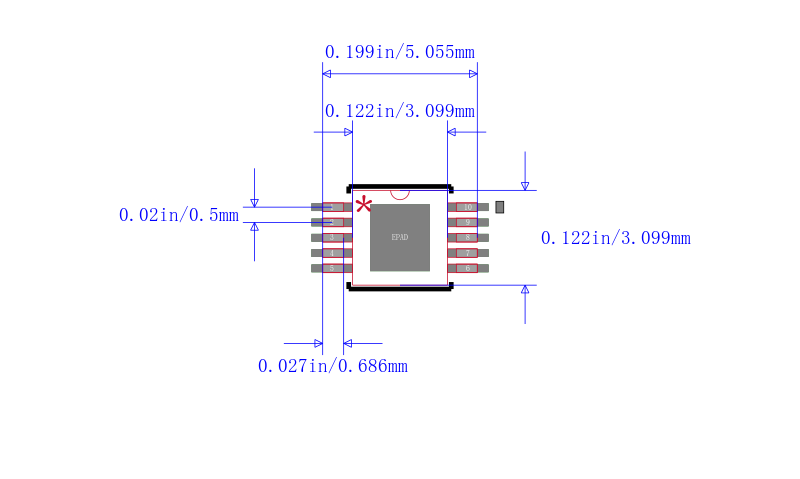

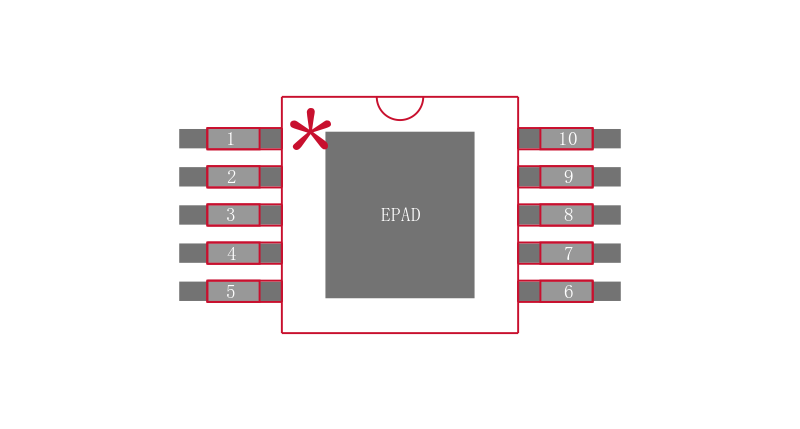

封装 MSOP-10
封装 MSOP-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4441EMSE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4441EMSE#TRPBF 凌力尔特 | 完全替代 | LTC4441EMSE#PBF和LTC4441EMSE#TRPBF的区别 |
