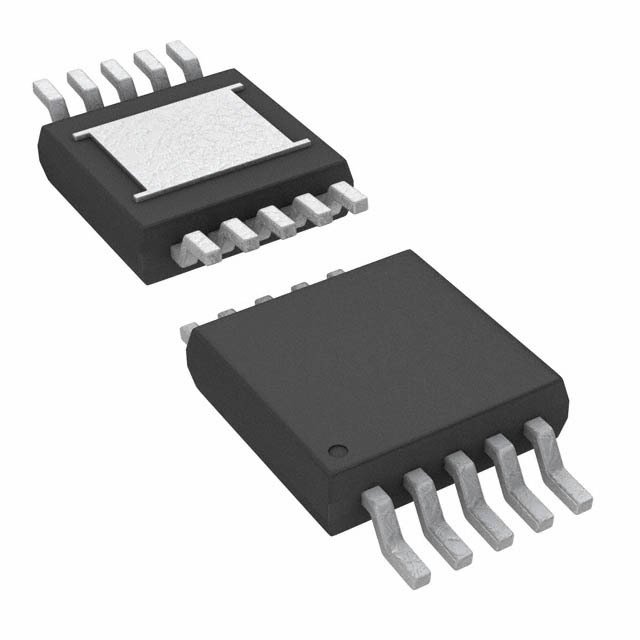

Linear Voltage Regulator IC Positive Adjustable 2 Output 1.22V ~ 20V 100mA 10-MSOP-EP
Keep calm and stay stable by implementing this LDO linear regulator developed by . Its typical dropout voltage at current is 0.1@1mA|0.17@10mA|0.24@50mA|0.3@100mA V. This voltage regulation device"s 2 outputs can produce a current up to 0.1 A. Use this part at voltages between 1.8 V and 20 V. With an adjustable output that has a voltage of 1.22 to 20 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 12mV and line regulation of 10mV. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.15@1mA|0.22@10mA|0.28@50mA|0.35@100mA V.
输出接口数 2
输入电压DC 20.0V max
输出电压 1.22V ~ 20V
输出电流 100 mA
跌落电压 0.1V @1mA,0.17V @10mA,0.24V @50mA,0.3V @100mA
输入电压Max 20 V
输入电压Min 1.8 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 1.8V ~ 20V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3023EMSE#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3023EMSE#PBF 凌力尔特 | 完全替代 | LT3023EMSE#TRPBF和LT3023EMSE#PBF的区别 |
NCP3335AMNADJR2G 安森美 | 功能相似 | LT3023EMSE#TRPBF和NCP3335AMNADJR2G的区别 |
TPS71202MDRCTEP 德州仪器 | 功能相似 | LT3023EMSE#TRPBF和TPS71202MDRCTEP的区别 |
