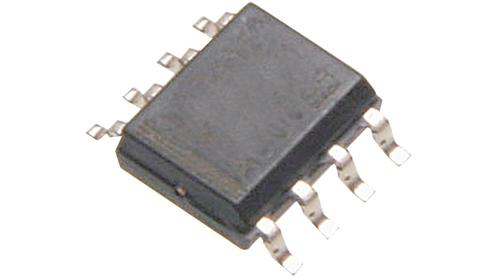

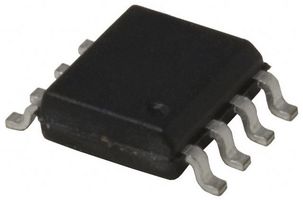

SIMPLE SWITCHER® 降压调节器,LM267x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
SIMPLE SWITCHER® 降压调节器,LM267x 系列
### 直流/直流开关调节器,Texas Instruments
用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
得捷:
IC REG BUCK 5V 500MA 8SOIC
欧时:
### SIMPLE SWITCHER® 降压调节器,LM267x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
立创商城:
降压型 Vin=6.5V~40V Vout=5V 500mA
德州仪器TI:
8V to 40V, 500mA SIMPLE SWITCHER® buck converter with 5 external components
e络盟:
降压开关稳压器, 固定, 6.5V-40V输入, 5V和0.5A输出, 260 kHz, SOIC-8
艾睿:
Conv DC-DC 8V to 40V Synchronous Step Down Single-Out 5V 0.5A 8-Pin SOIC Tube
Jameco:
Converter DC-DC Single Step Down 8 Volt to 40 Volt 8-Pin SOIC
安富利:
The LM2671 series of regulators are monolithic integrated circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down buck switching regulator, capable of driving a 500mA load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5.0V, 12V, and an adjustable output version.Requiring a minimum number of external components, these regulators are simple to use and include patented internal frequency compensation Patent Nos. 5,382,918 and 5,514,947, fixed frequency oscillator, external shutdown, soft-start, and frequency synchronization.The LM2671 series operates at a switching frequency of 260 kHz, thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Because of its very high efficiency >90%, the copper traces on the printed circuit board are the only heat sinking needed.A family of standard inductors for use with the LM2671 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies using these advanced ICs. Also included in the datasheet are selector guides for diodes and capacitors designed to work in switch-mode power supplies.Other features include a ensured ±1.5% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring typically 50 μA stand-by current. The output switch includes current limiting, as well as thermal shutdown for full protection under fault conditions.To simplify the LM2671 buck regulator design procedure, there exists computer design software, version 6.0.
Chip1Stop:
Conv DC-DC 8V to 40V Step Down Single-Out 5V 0.5A 8-Pin SOIC Tube
TME:
DC/DC converter; buck, step down; Uin:8÷40V; Uout:5V; 0.5A; SO8
Verical:
Conv DC-DC 8V to 40V Synchronous Step Down Single-Out 5V 0.5A 8-Pin SOIC Tube
Newark:
# TEXAS INSTRUMENTS LM2671M-5.0/NOPB Buck Step Down Switching Regulator, Fixed, 6.5V-40V In, 5V And 0.5A Out, 260 kHz, SOIC-8
DeviceMart:
IC REG BUCK 5V 0.5A 8-SOIC
Win Source:
Buck Switching Regulator IC Positive Fixed 5V 1 Output 500mA 8-SOIC 0.154", 3.90mm Width
频率 260 kHz
电源电压DC 6.50 V, 40.0 V max
输出接口数 1
输出电压 5 V
输出电流 500 mA
通道数 1
针脚数 8
静态电流 2.50 mA
调节输出数 1
开关频率 260 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 6.5 V
输出电压Min 5 V
输出电流Max 500 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8 V
输入电压 8.40 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.45 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2671M-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2671MX-5.0/NOPB 德州仪器 | 类似代替 | LM2671M-5.0/NOPB和LM2671MX-5.0/NOPB的区别 |
LM2671MX-5.0 德州仪器 | 类似代替 | LM2671M-5.0/NOPB和LM2671MX-5.0的区别 |
LM2671M-5.0 德州仪器 | 类似代替 | LM2671M-5.0/NOPB和LM2671M-5.0的区别 |
