SIMPLE SWITCHER® 降压调节器,LM257x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
SIMPLE SWITCHER® 降压调节器,LM257x 系列
### 直流/直流开关调节器,Texas Instruments
用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
得捷:
LM2576 SIMPLE SWITCHER 40V, 3A L
欧时:
### SIMPLE SWITCHER® 降压调节器,LM257x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
贸泽:
开关稳压器
艾睿:
Adjust the voltage level of your devices with this inverting and step down LM2576T-ADJ/LB03 DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. It only needs a voltage of at least 4 V while not exceeding 40 V to effectively power your circuit. With an adjustable output that has a voltage of 1.23 to 37 V, this is power management at its best. This converter is 77typ % efficient. Its switching regulator has a frequency of 47 to 58 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has an operating temperature range of -40 °C to 125 °C.
安富利:
Conv DC-DC Single Inv/Step Down 4V to 40V 5-Pin5+Tab TO-220 Rail
Verical:
Conv DC-DC 4V to 40V Inv/Step Down Single-Out 1.23V to 37V 3A 5-Pin5+Tab TO-220 Tube
输出接口数 1
输出电压 1.23V ~ 37V
输出电流 3 A
静态电流 5.00 mA
调节输出数 1
开关频率 52 kHz
拓扑结构 Buck
开关电流 5.8 A
输入电压Max 40 V
输入电压Min 4 V
输出电压Max 37 V
输出电压Min 1.23 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 40 V
安装方式 Through Hole
引脚数 5

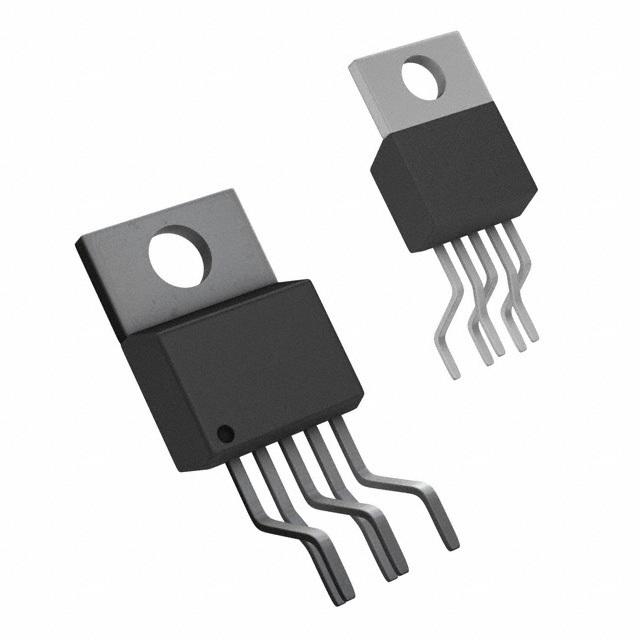

封装 TO-220-5
长度 10.16 mm
宽度 4.7 mm
高度 8.89 mm
封装 TO-220-5
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2576T-ADJ/LB03 TI 德州仪器 | 当前型号 | 当前型号 |
LM2576T-ADJ/NOPB 德州仪器 | 类似代替 | LM2576T-ADJ/LB03和LM2576T-ADJ/NOPB的区别 |
LM2577S-ADJ/NOPB 德州仪器 | 功能相似 | LM2576T-ADJ/LB03和LM2577S-ADJ/NOPB的区别 |
LM2577SX-ADJ/NOPB 德州仪器 | 功能相似 | LM2576T-ADJ/LB03和LM2577SX-ADJ/NOPB的区别 |
