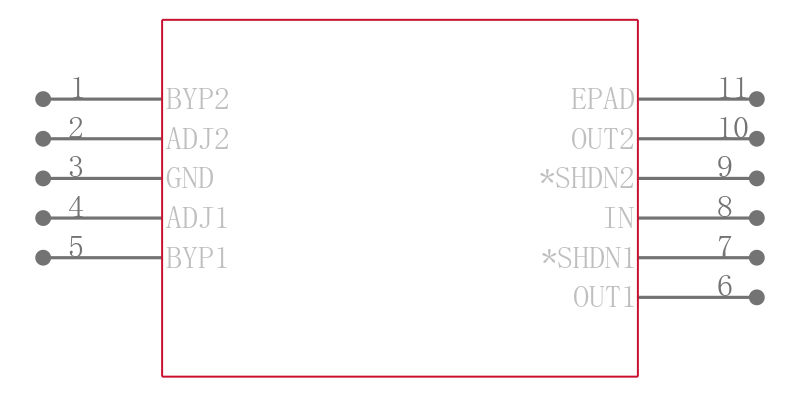

LT3023EDD

IC REG LDO ADJ 0.1A 10DFN

DESCRIPTION

The LT®3023 is a dual, micropower, low noise, low drop out regulator. With an external 0.01μF bypass capacitor, output noise drops to 20μVRMS over a 10Hz to 100kHz bandwidth. Designed for use in battery-powered systems, the low 20μA quiescent current per channel makes it an ideal choice. In shutdown, quiescent current drops to less than 0.1μA. Shutdown control is independent for each channel, allowing for flexibility in power management. The device is capable of operating over an input voltage from 1.8V to 20V, and can supply 100mA of output current from each channel with a dropout voltage of 300mV. Quiescent current is well controlled in dropout.

FEATURES

Low Noise: 20μVRMS 10Hz to 100kHz

Low Quiescent Current: 20μA/Channel

Wide Input Voltage Range: 1.8V to 20V

Output Current: 100mA/Channel

Very Low Shutdown Current: <0.1μA

Low Dropout Voltage: 300mV at 100mA

Adjustable Output from 1.22V to 20V

Stable with 1μF Output Capacitor

Stable with Aluminum, Tantalum or Ceramic Capacitors

Reverse Battery Protected

No Reverse Current

No Protection Diodes Needed

Overcurrent and Overtemperature Protected

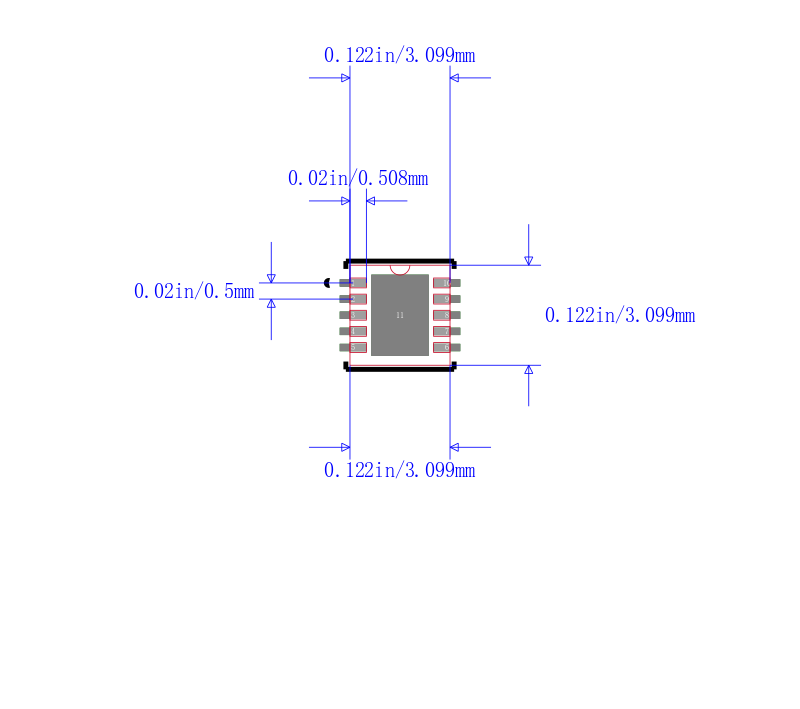

Thermally Enhanced 10-Lead MSOP and DFN Packages

Applications

Cellular Phones

Pagers

Battery-Powered Systems

Frequency Synthesizers

Wireless Modems
