LP3872 / LP3875 1.5A快速超低压降线性稳压器 LP3872/LP3875 1.5A Fast Ultra Low Dropout Linear Regulators

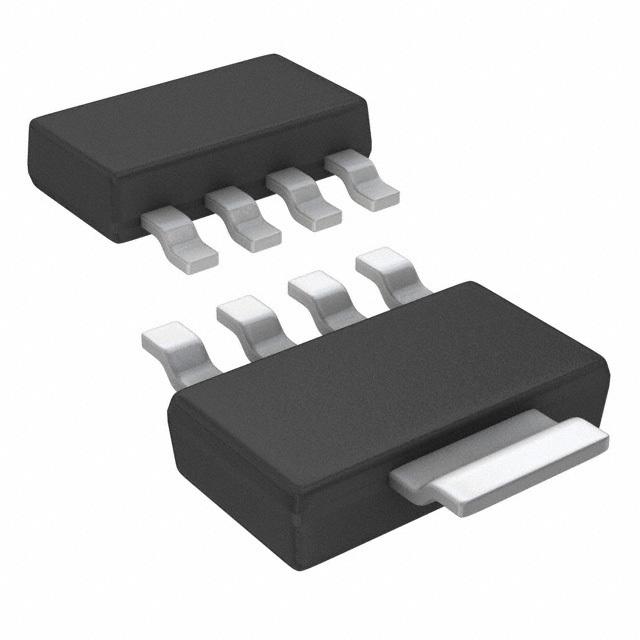

Linear Voltage Regulator IC 1 Output 1.5A SOT-223-5
得捷:
IC REG LINEAR 2.5V 1.5A SOT223-5
立创商城:
LP3872EMPX-2.5/NOPB
德州仪器TI:
1.5-A, low-dropout voltage regulator with power good & enable
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO LP3872EMPX-2.5/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.038@150mA|0.38@1.5A V. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 7 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Using a load regulation of 0.06%Typ and line regulation of 0.02%Typ is needed for a programmable DC power supply. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.05@150mA|0.45@1.5A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 2.5V 1.5A 5-Pin4+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 2.5V 1.5A 5-Pin4+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 2.5V 1.5A 5-Pin4+Tab SOT-223 T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 1.5A SOT-23-5
输出接口数 1
输出电压 2.5 V
输出电流 1.5 A
供电电流 5mA ~ 15mA
静态电流 6 mA
输出电容类型 Ceramic
跌落电压 0.38V @1.5A
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电压Min 2.5 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤7 V
安装方式 Surface Mount
引脚数 5
封装 TO-261-5
封装 TO-261-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3872EMPX-2.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3872EMPX-2.5 德州仪器 | 类似代替 | LP3872EMPX-2.5/NOPB和LP3872EMPX-2.5的区别 |
