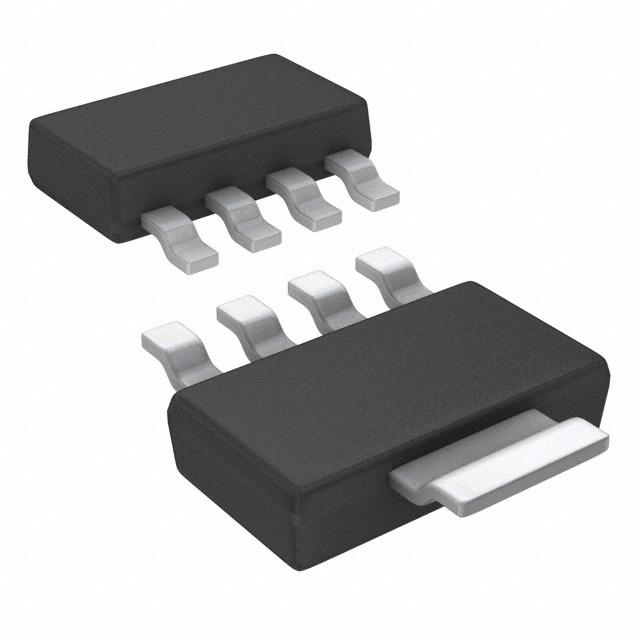

LP3872EMP-1.8/NOPB

LP3872 / LP3875 1.5A快速超低压降线性稳压器 LP3872/LP3875 1.5A Fast Ultra Low Dropout Linear Regulators

PMIC - 稳压器 - 线性 正 固定 1 输出 1.5A SOT-223-5

立创商城:
LP3872EMP-1.8/NOPB

德州仪器TI:
1.5-A, low-dropout voltage regulator with power good & enable

得捷:
IC REG LINEAR 1.8V 1.5A SOT223-5

贸泽:
LDO Voltage Regulators 1.5A Fast Ultra Low Dropout Linear Regulator 5-SOT-223 -40 to 125

艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO LP3872EMP-1.8/NOPB linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.038@150mA|0.38@1.5A V. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 7 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Using a load regulation of 0.06%Typ and line regulation of 0.02%Typ is needed for a programmable DC power supply. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.05@150mA|0.45@1.5A V. Its polarity is positive.

安富利:
LDO Regulator Pos 1.8V 1.5A 5-Pin4+Tab SOT-223 T/R

Chip1Stop:
LDO Regulator Pos 1.8V 1.5A 5-Pin4+Tab SOT-223 T/R

Verical:
LDO Regulator Pos 1.8V 1.5A 5-Pin4+Tab SOT-223 T/R

罗切斯特:
LDO Regulator Pos 1.8V 1.5A 5-Pin4+Tab SOT-223 T/R

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 1.5A SOT-223-5
