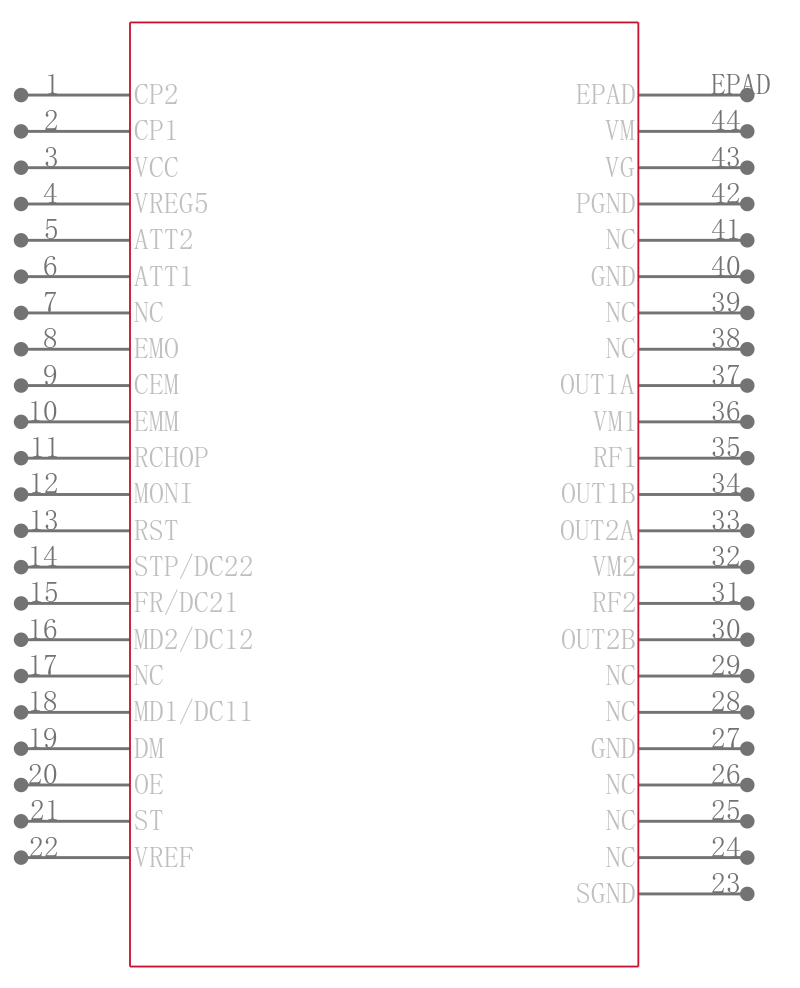

LV8741V-MPB-E

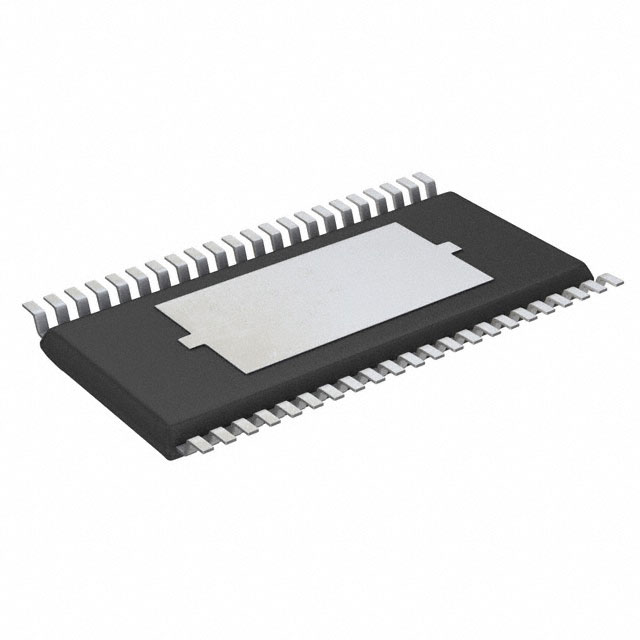

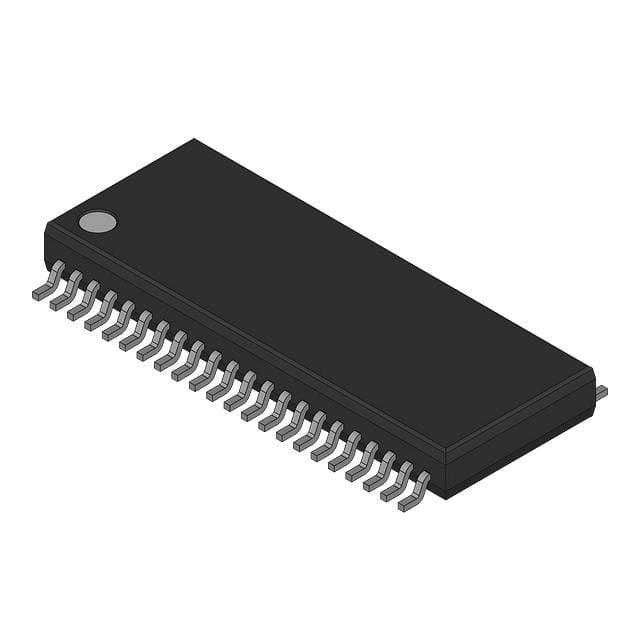

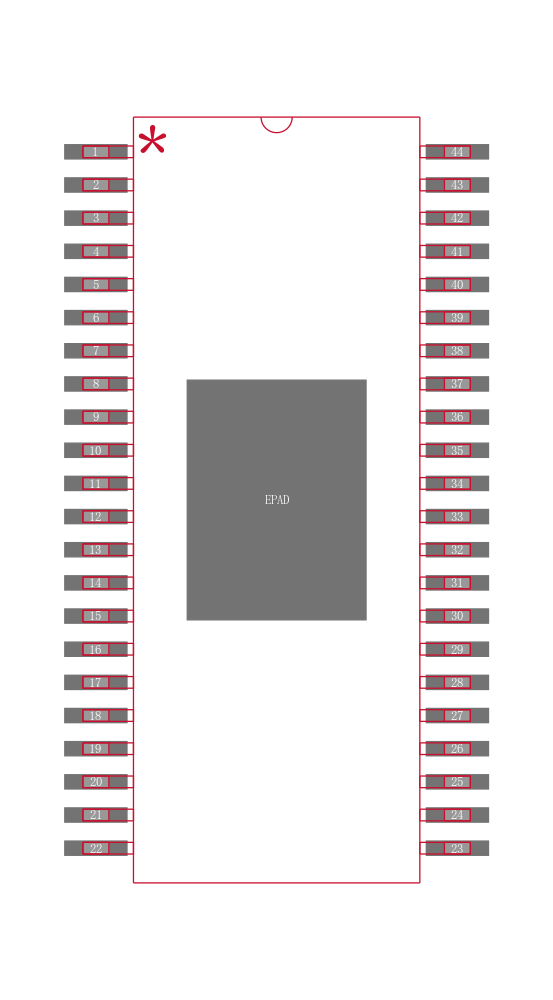

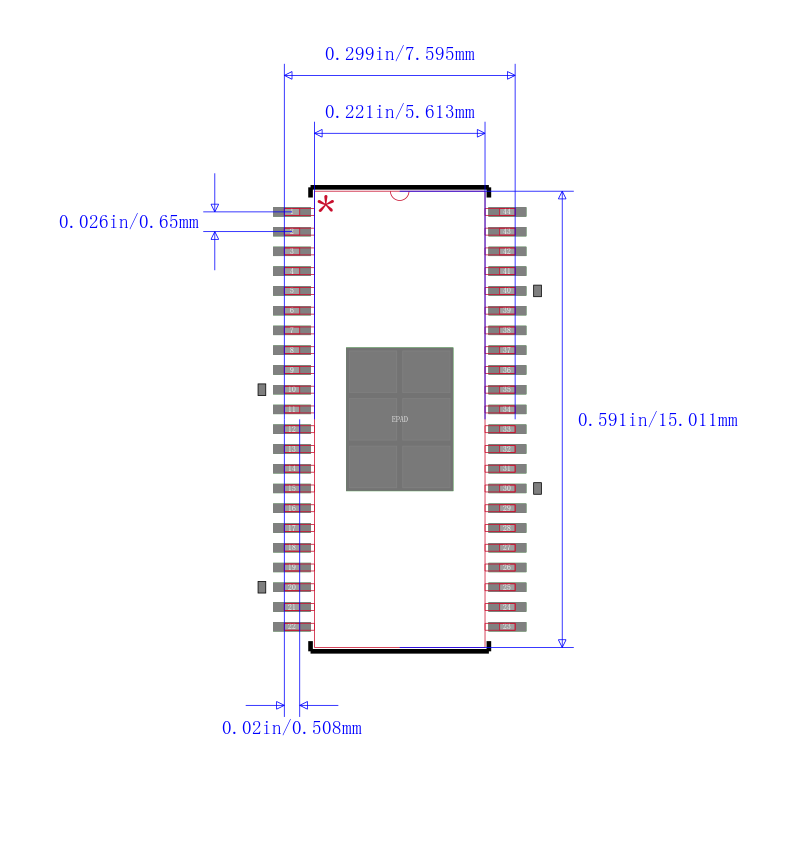

LV8741V 系列 6 V 1.5 A 550 mW 双通道 PWM 步进电机驱动器 - SSOP-44K

The LV8741V is a 2-channel H-bridge driver IC that can switch a stepper motor driver, which is capable of micro-step drive and supports Quarter-step excitation, and two channels of a brushed motor driver, which supports forward, reverse, brake, and standby of a motor. It is ideally suited for driving brushed DC motors and stepper motors used in office equipment and amusement applications.

Features |   | Benefits

---|---|---

 | |  | |  |

.

On resistance upper side : 0.5Ω ; lower side : 0.5Ω ; total of upper and lower : 1.0Ω ; Ta = 25°C, IO = 1.5A

|   |

.

High Efficiency

.

Excitation mode can be set to Full-step, Half-step full torque, Half-step or Quarter-step

|   |

.

Various Step Adjustment Available

.

Motor current selectable in four steps

|   |

.

Low Consumption

.

Output short-circuit protection circuit selectable from latch-type or auto reset-type incorporated

|   |

.

Safety Design

.

Thermal shutdown circuit and power supply monitor circuit incorporated

|   |

.

Thermal protection, Low voltage detection

.

CLK-IN Input

|   |

.

Easy Control for Micro-step Drive

.

Single-channel PWM current control stepper motor driver selectable with DC motor driver channel 2 incorporated.

|   |

.

BiCDMOS process IC

|   |

.

Excitation step proceeds only by step signal input

|   |

.

IO max = 1.5A

|   |

.

No control supply required VCC = 3.3V

|   |

.

Unusual Condition Warning Output Pin

|   |
