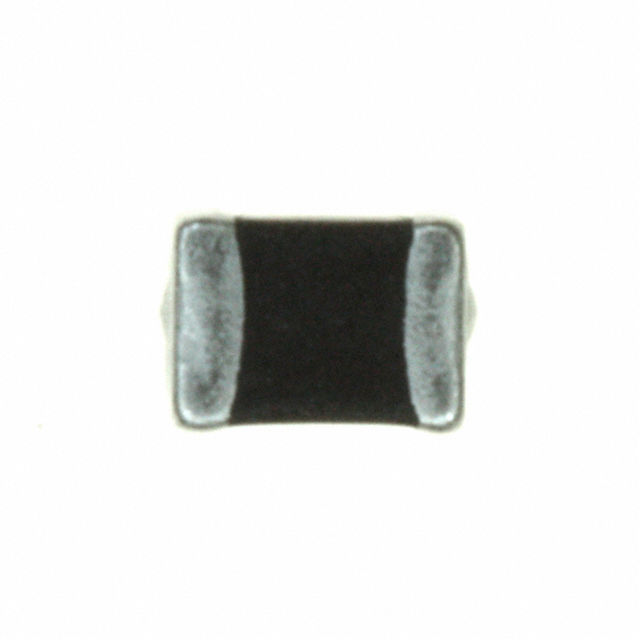

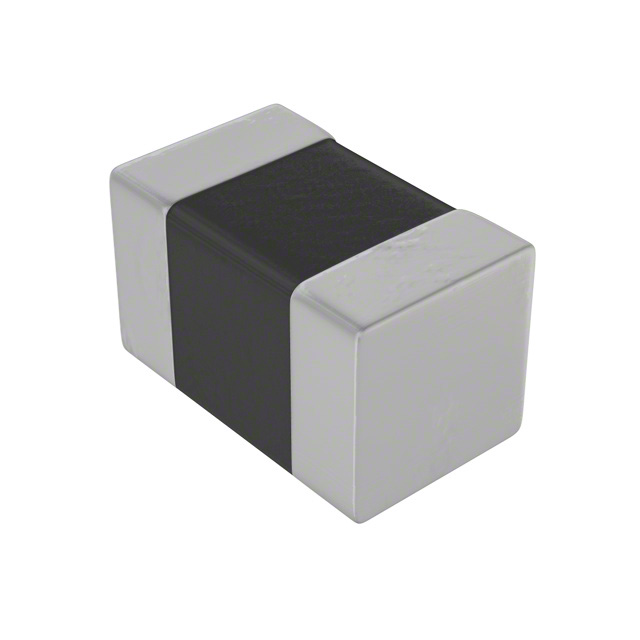

2518 47uH ±10%
47µH Unshielded Wirewound Inductor 120mA 840mOhm 1007 2518 Metric
得捷:
FIXED IND 47UH 120MA 840MOHM SMD
立创商城:
47uH ±10% 120mA 840mΩ
艾睿:
Inductor General Purpose Chip Wirewound 47uH 10% 2.52MHz Ferrite 0.12A 1.092Ohm DCR 1007 T/R
Chip1Stop:
Inductor Chip Wirewound 47uH 10% 2.52MHz Ferrite 120mA 1.092Ohm DCR 1007 T/R
Verical:
Inductor General Purpose Chip Wirewound 47uH 10% 2.52MHz Ferrite 0.12A 1.092Ohm DCR 1007 T/R
Electro Sonic:
Inductor General Purpose Chip Wirewound 47uH 10% 2.52MHz Ferrite 0.12A 1.092Ohm DCR 1007 T/R
额定电流 120 mA
容差 ±10 %
无卤素状态 Halogen Free
电感 47 µH
自谐频率 11 MHz
产品系列 LB
电感公差 ±10 %
测试频率 2.52 MHz
电阻DC) 840 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 1.092 Ω
安装方式 Surface Mount
封装 1007
长度 2.5 mm
宽度 1.8 mm
高度 1.8 mm
封装 1007
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
