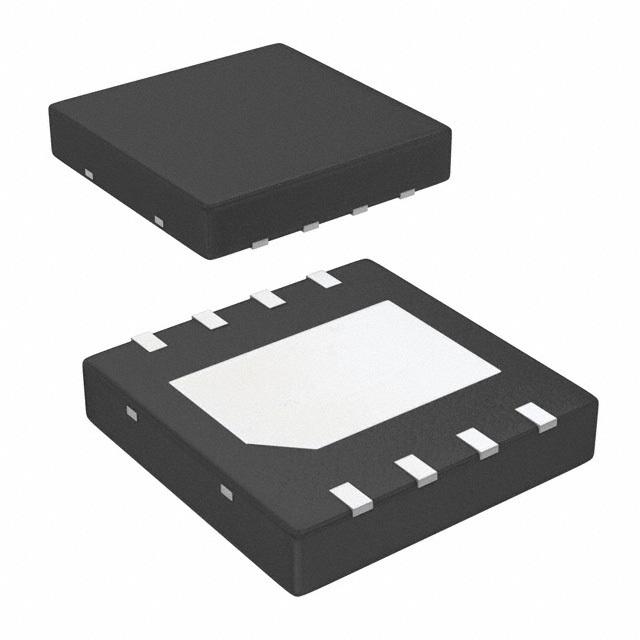

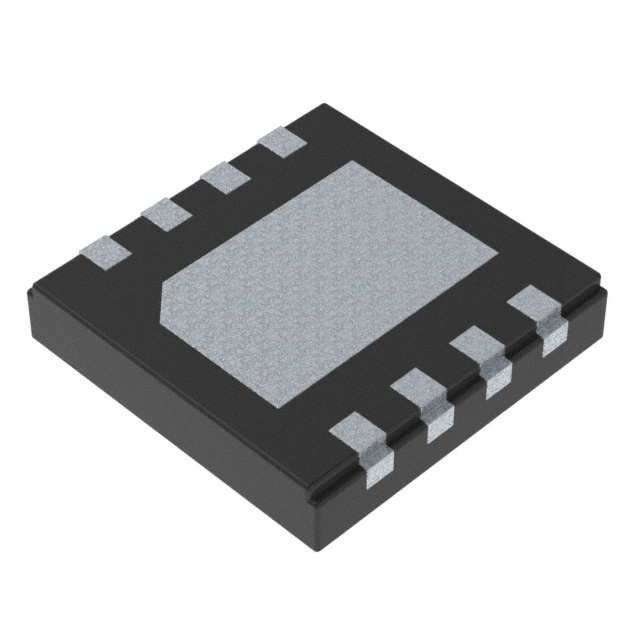

7.5-100V 宽输入电压,100mA 恒定导通时间同步降压稳压器 8-WSON -40 to 125
The LM5019 is a 100-V, 100-mA synchronous step-down regulator with integrated high-side and low-side MOSFETs. The constant-on-time COT control scheme employed in the LM5019 requires no loop compensation, provides excellent transient response, and enables very low step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high-voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers.
A peak current limit circuit protects against overload conditions. The undervoltage lockout UVLO circuit allows the input undervoltage threshold and hysteresis to be independently programmed. Other protection features include thermal shutdown and bias supply undervoltage lockout.
The LM5019 device is available in WSON-8 and SO PowerPAD-8 plastic packages.
输出接口数 1
输出电压 1.25V ~ 90V
输出电流 100 mA
静态电流 1.75 mA
调节输出数 1
开关频率 1000 kHz
拓扑结构 Buck
输入电压Max 100 V
输入电压Min 7.5 V
输出电压Max 90 V
输出电压Min 1.225 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 100 V
安装方式 Surface Mount
引脚数 8
封装 WDFN-8
封装 WDFN-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5019SDX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
